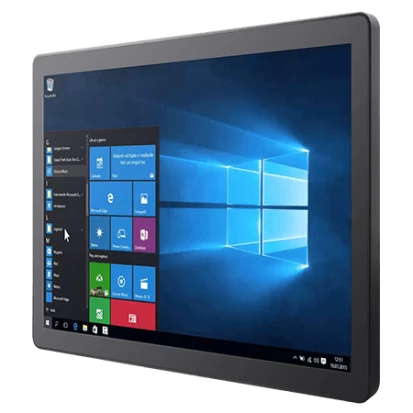

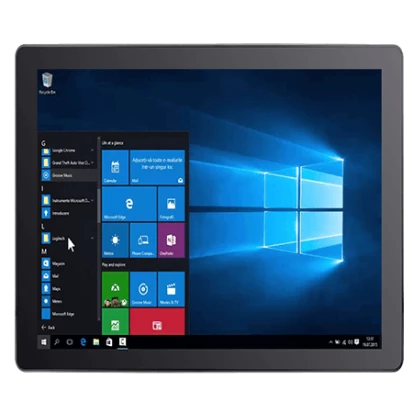

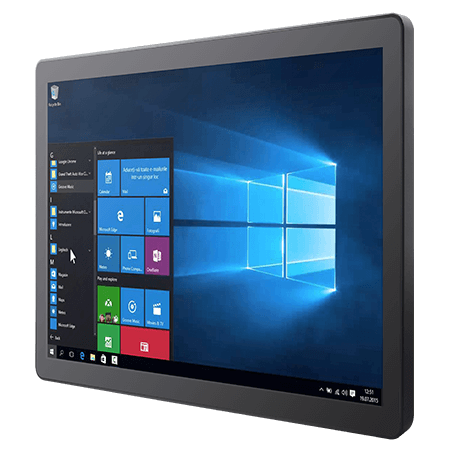

R19IE3S-GCM1

R19IE3S-GCM1

Winmate
SKU: 10952800
19" Fanless Panel PC, G-WIN GC Series, IP65 Front, 1280x1024, 250 cd/m2, PCAP Touch, Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB SATA SSD, HDMI Opt., 1xCOM, 2xUSB 3.2, 2x2.5GbE LAN, Audio, 1x2.5" Drive Bay, 12VDC-in w/ PSU
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10, Windows 11
Dimensions and weight
Width
445 mm
Height
370 mm
Depth
51 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Vibration
MIL-STD-810G Method 514.6
Shock
MIL-STD-810G Method 516.6
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
7.5 kg
Gross Weight
8.5 kg
