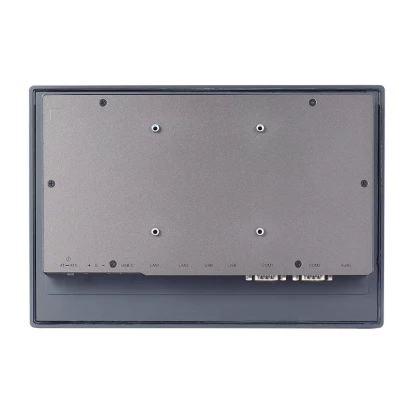

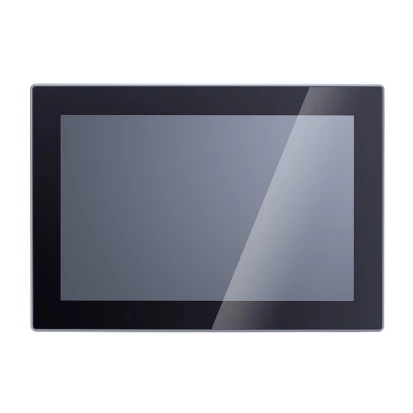

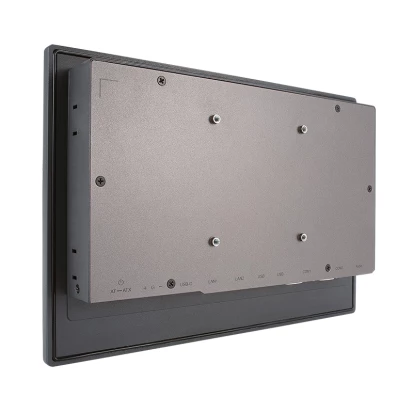

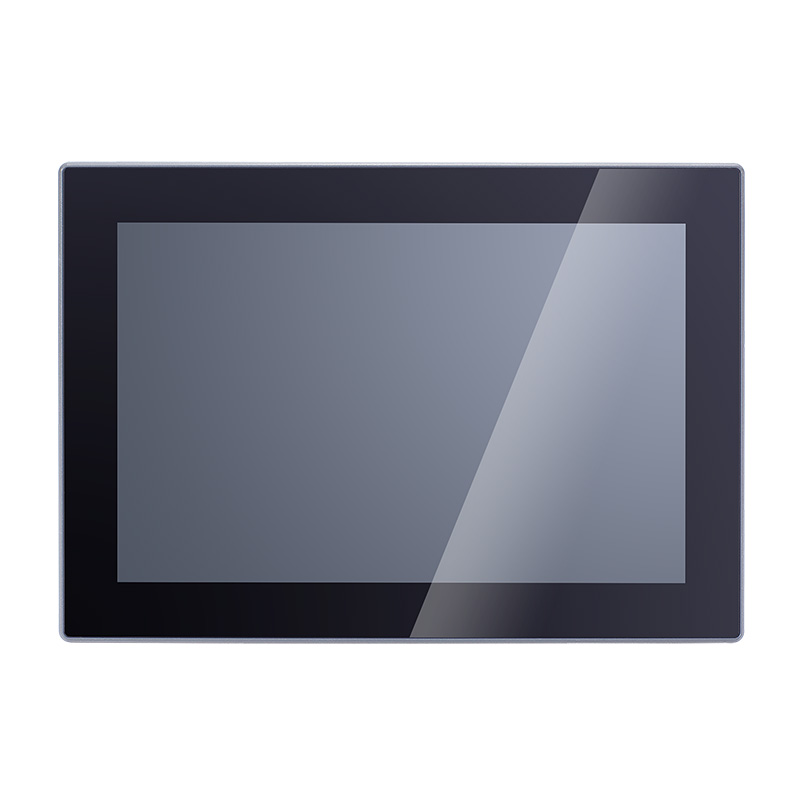

GOT110A-TWL-WCD
AXIOMTEK
SKU: 80221800
10.1" Fanless Panel PC, IP65/NEMA4 Front, 1280x800, 350cd/m2, PCAP Touch, Intel N150 3.6GHz CPU, 8GB LPDDR5 RAM, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xUSB Type-C DP Alt., 2xCOM, Audio, SIM slot, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65, NEMA 4
Protection Level of Chassis
IP30
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N150
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
5
USB 2.0
2
USB v3.x
3
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2280 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors

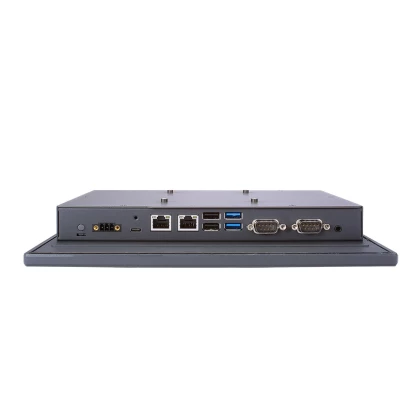

2xDB9, 2xRJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block), USB type C
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
263.4 mm
Height
182.4 mm
Depth
38 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A, rohs
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.74 kg
Gross Weight
3.16 kg
