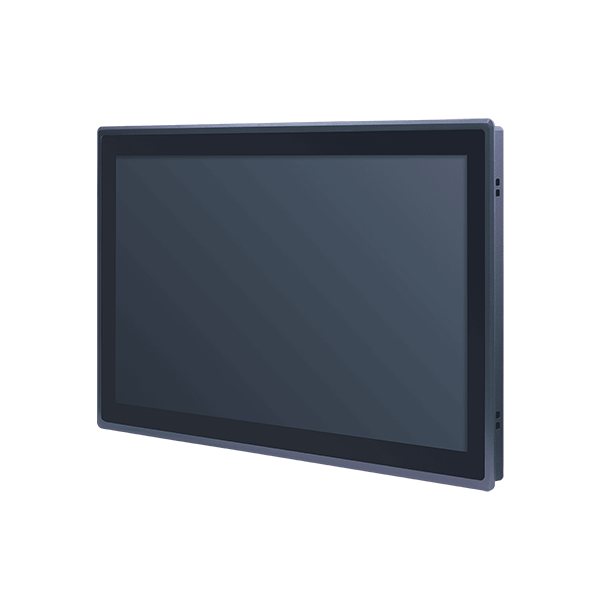

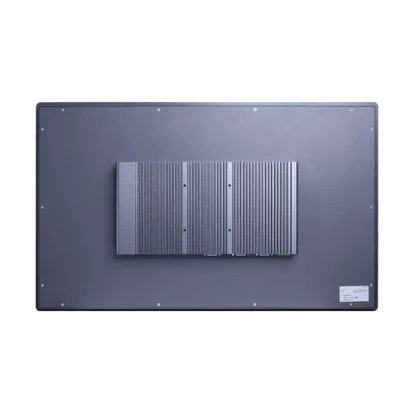

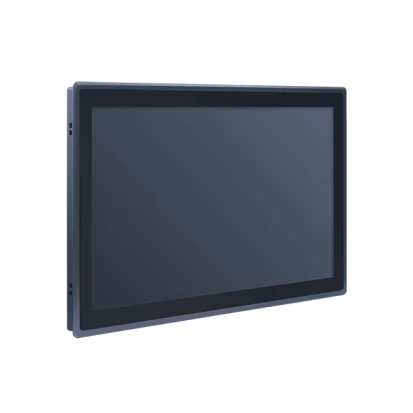

SP-241C-1N305

Arbor
SKU: 80201200
23.8" Fanless Panel PC, IP66 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i3-N305 CPU, Up to 16GB DDR5 RAM, HDMI, 2x2.5GbE LAN, 3xCOM, 2xUSB 3.2, 2xUSB 2.0, 1x2.5" Bay, 1xM.2 Key-M (SATA), 1xM.2 Key-E, 10-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i3-N305
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
3
RS-232
1
RS-232/485
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
2
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
3xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
10..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
594.3 mm
Height
366.6 mm
Depth
70 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
7.14 kg
Gross Weight
8.1 kg
