iPPC-6831-IoT

iPPC-6831-IoT

ICP DAS
SKU: 10034600

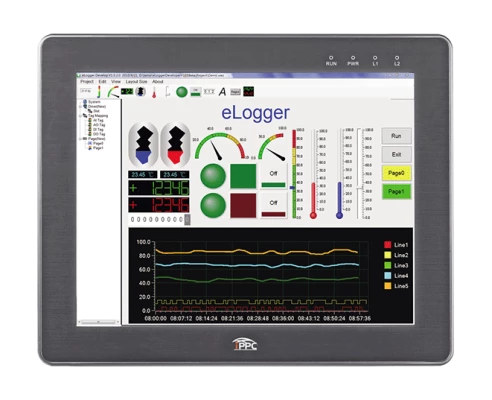

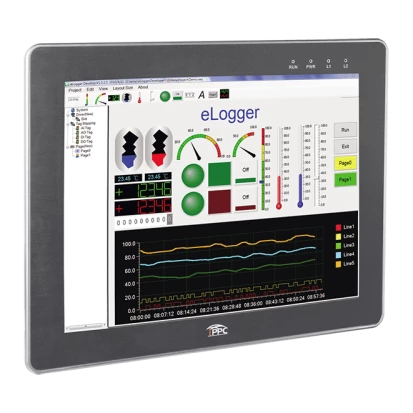

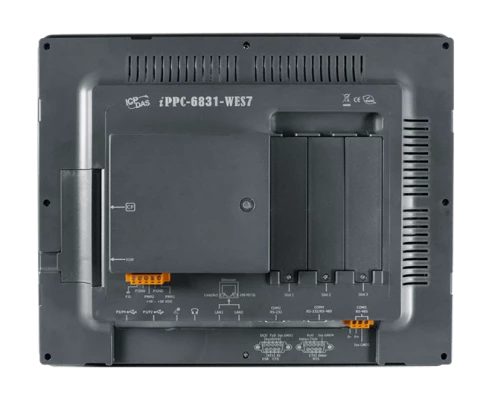

15" Touch Panel PC with Intel Atom E3845 1.91GHz CPU, 4GB DDR3, 128KB MRAM, 32GB SSD, 2xGB LAN, 3xUSB 2.0, 16GB CF, 3 expansion slots and WES7 OS, NEMA4/IP65 Front Panel
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65, NEMA 4
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Contrast Ratio
700~1
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3, SDRAM
Default on Board Memory
4 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
1
RS-232/485
1
USB Total
3
USB 2.0
3
Extension Slots
Total
3
Connectors
Connectors
Audio
System Power Input
Input Voltage DC
10..30 V
Power Consumption
25 W
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65, NEMA 4
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Contrast Ratio
700~1
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3, SDRAM
Default on Board Memory
4 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
1
RS-232/485
1
USB Total
3
USB 2.0
3
Extension Slots
Total
3
Connectors
Connectors
Audio
System Power Input
Input Voltage DC
10..30 V
Power Consumption
25 W
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65, NEMA 4
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Contrast Ratio
700~1
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3, SDRAM
Default on Board Memory
4 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
1
RS-232/485
1
USB Total
3
USB 2.0
3
Extension Slots
Total
3
Connectors
Connectors
Audio
System Power Input
Input Voltage DC
10..30 V
Power Consumption
25 W
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65, NEMA 4
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Contrast Ratio
700~1
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3, SDRAM
Default on Board Memory
4 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
1
RS-232/485
1
USB Total
3
USB 2.0
3
Extension Slots
Total
3
Connectors
Connectors
Audio
System Power Input
Input Voltage DC
10..30 V
Power Consumption
25 W
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Documentation
iPPC-6831-IoT-Datasheet.pdf
Documentation
iPPC-6831-IoT-Datasheet.pdf
Documentation
iPPC-6831-IoT-Datasheet.pdf
Documentation
iPPC-6831-IoT-Datasheet.pdf
