APPC-1060-A01

APPC-1060-A01

NEXCOM
SKU: 80419800

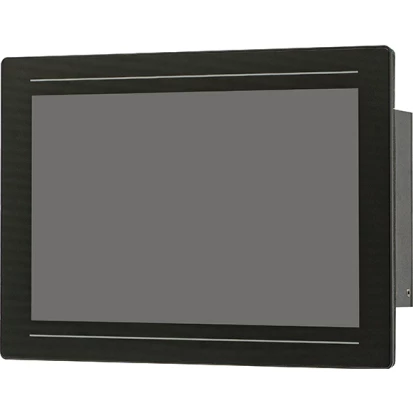

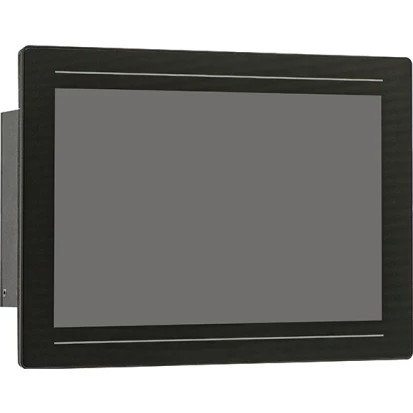

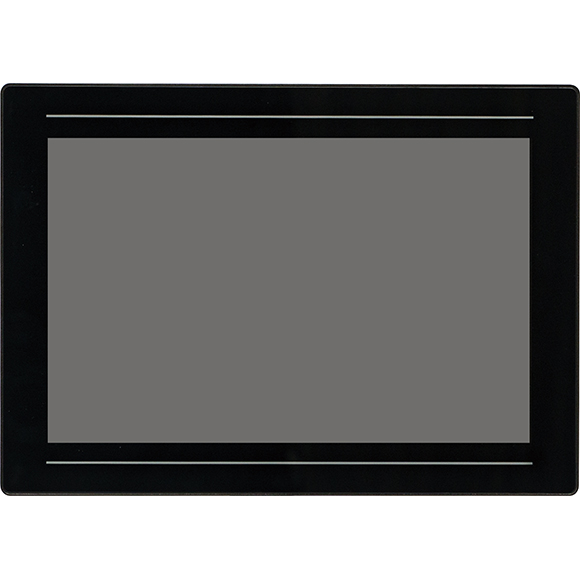

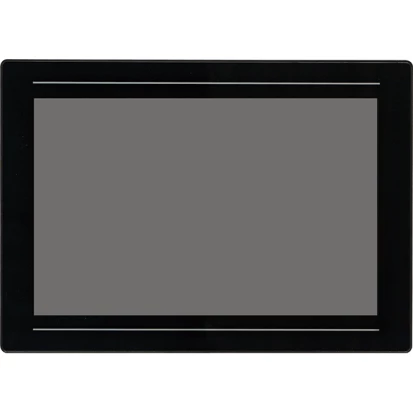

10" Fanless APPC-1060 Panel PC, IP65 Front, 1280x800, 500cd/m, PCAP Touch, Intel Alder Lake N97 CPU, 8GB DDR5 RAM, HDMI, 2x2.5GbE LAN, 1xCOM, 2xUSB 3.2, 2xUSB-C 3.2 DP/PD Alt., MicroSD, 1xM.2 Key-B (SATA), 1xM.2 Key-B, 1xM.2 Key-E, Audio, 24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
CPU onboard
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
MicroSD
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2230 E, 3052 B, 3042 B, 2242 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

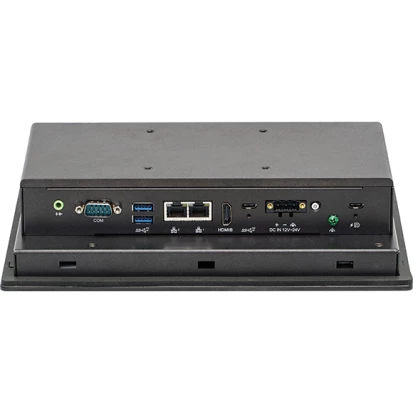

DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC input (terminal block), 2xUSB type C
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
259.5 mm
Height
184 mm
Depth
62.2 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-90%
Vibration
- 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC60068-2-64 - 2G@random condition, 5-500Hz, 1hr/axis (Non-operating) - IEC60068-2-64
Shock
- 20G@wall mount, half sine, 11ms, IEC60068-2-27s
Standards and Certifications
Certifications
CE, FCC Class A
EMI
EN 55032, EN 55035
Dimensions
Net Weight
2.5 kg
Gross Weight
3.2 kg

Documentation
APPC-1060-A01-Datasheet-10152026.pdf
