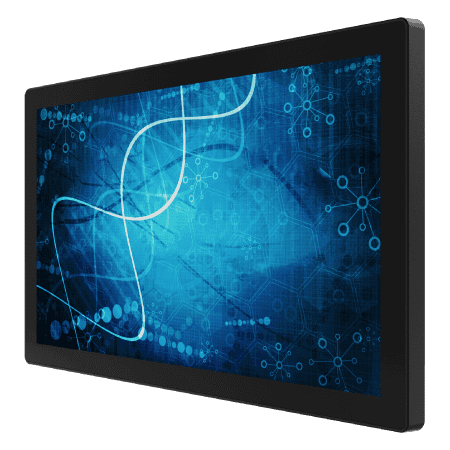

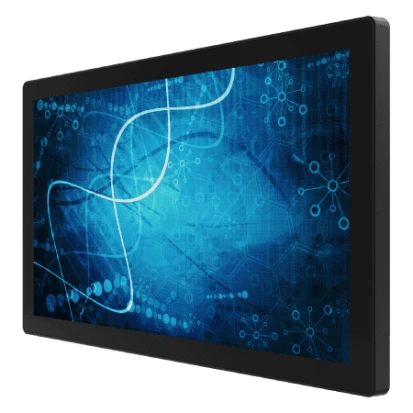

W24IT7T-PTA2-ME

W24IT7T-PTA2-ME

Winmate
SKU: 57903900
23.8" Fanless Medical Panel PC, IP65 Front, 1920x1080, 250 cd/m2, Intel 11th Gen Core i5-1135G7 CPU, Up to 64GB DDR4 RAM, Up to 2TB M.2 SSD, 1xDP, 1xCOM, 4xUSB 3.2, 1xGbE LAN, 1x2.5GbE LAN, Audio, 1xM.2 2280, 1xM.2 2230, TPM, 24VDC-in w/ PSU, 0..50C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Input Interface
DisplayPort
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2280 M, 2230 E
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
150 W
AC input voltage
100-240 V
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
588 mm
Height
358 mm
Depth
60 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
EMI
EN 55032, EN 55035
Medicine
EN 60601-1, IEC 60601-1
Dimensions
Net Weight
10.5 kg
Gross Weight
11.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
