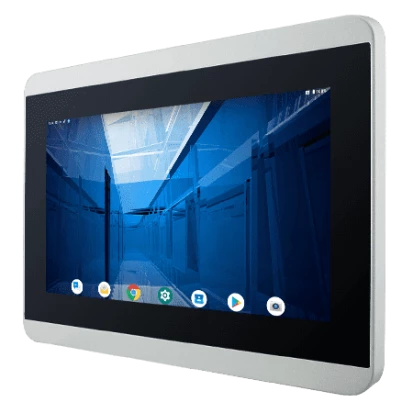

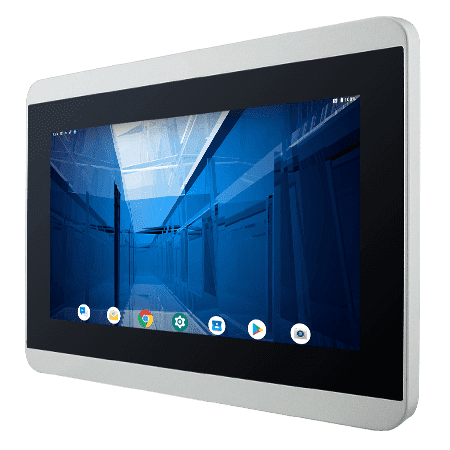

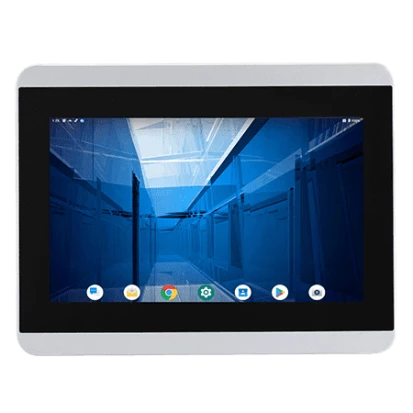

W07IM3S-GCT1
Winmate
SKU: 57915300
7" Fanless Panel PC, G-WIN GC Series, IP65 Front, 1024x600, 320 cd/m2, PCAP Touch, ARM Cortex-A53 Quad-Core 2.0GHz SoC, 4GB LPDDR4 RAM, 32GB eMMC, 1xMicroHDMI (Optional), 1xCOM, 2xUSB 2.0, 1xMicro-USB OTG, 1xGbE LAN, 1xMicroSD, 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
320 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB, MicroSD card slot
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Ubuntu
Operating System Installed
Android
Dimensions and weight
Width
189.4 mm
Height
145.4 mm
Depth
39.8 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Vibration
MIL-STD-810G Method 514.6 Procedure I
Shock
MIL-STD-810G Method 516.6 Procedure I
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2.8 kg
Gross Weight
3.2 kg
