W18IAD3S-RKA1

W18IAD3S-RKA1

Winmate
SKU: 57929300

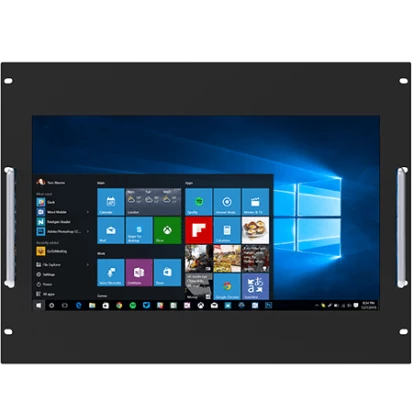

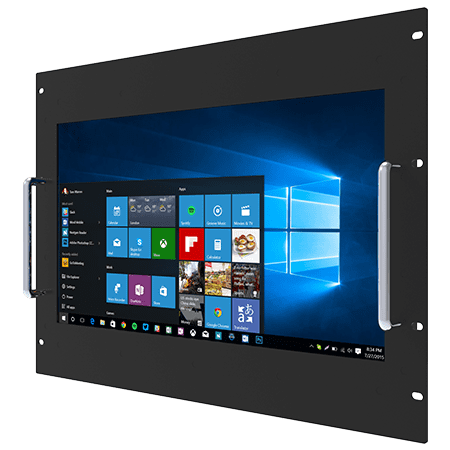

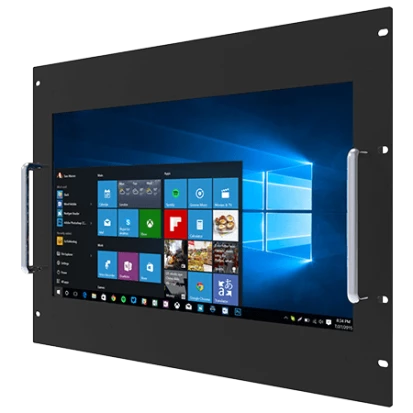

18.5" Rack Mount Panel PC, 1920x1080, 350cd/m2, Resistive Touch Opt., Intel Core i5-1235U CPU, 8GB DDR5 RAM, 128GB NVME SSD, HDMI Opt., 2x2.5GbE LAN, 2xUSB 3.2, 2xCOM, 1xSATA 3, Audio, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 12VDC-in w/ PSU
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
350 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
CPU onboard
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED, SSD LED
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
483 mm
Height
355 mm
Depth
72 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
5.9 kg
Gross Weight
6.8 kg
