W10IE3S-MRH2FP

Winmate
SKU: 57904100

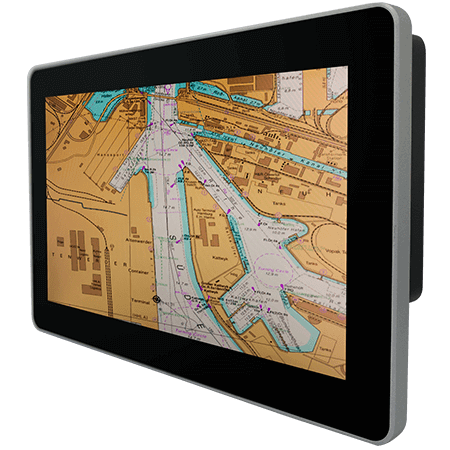

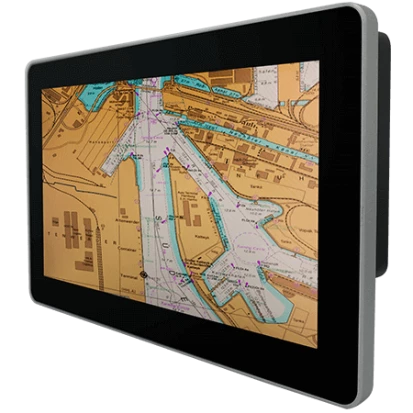

10.1" Fanless Panel PC, 1280x800, 350 cd/m2, IP66 Front, Intel Pentium N6415 1.2GHz CPU, 4GB DDR4 RAM, 256GB M.2 SSD, 1xHDMI Opt., 2xCOM, 2xUSB 3.2, 2xGbE LAN, 1xM.2 2242, TPM 2.0, 9-36VDC-in Terminal Block w/ PSU, -15..55C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Pentium N6415
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
256 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
AC input voltage
100-240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
263.28 mm
Height
172 mm
Depth
35.7 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
3 kg
Gross Weight
3.7 kg
