W38FA3S-CHA1

W38FA3S-CHA1

Winmate
SKU: 57914500

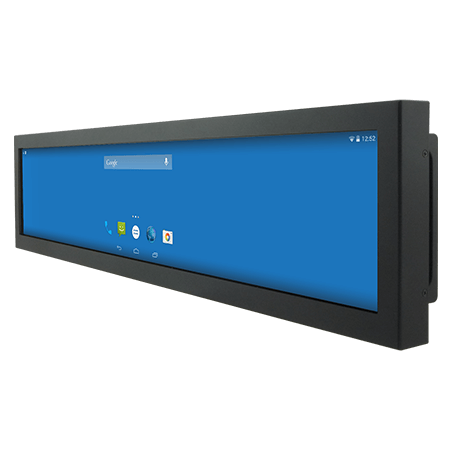

37" Fanless Bar Type Panel PC, 1920x540 LCD TFT, 1000cd/m2, Protective Glass, NXP i.MX6 Dual-Core 1.0Ghz CPU, 1GB RAM, 16GB (Up to 32GB) eMMC, HDMI Opt., 2xGbE LAN, 1xCOM, 1xUSB 3.0, 1xUSB 2.0, WiFi/BT Opt., 9-36VDC-in Terminal Block
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
VESA 200x100
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
37 "
Maximum resolution
1920x540 Dots
Brightness
1000 Cd/m2
Contrast Ratio
4000~1
CPU
Processor Installed
NXP i.MX6 dual-core
Socket
CPU onboard
Max CPU frequency
1 GHz
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
Default on Board Memory
1 GB
Maximum Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
LED / Controls
LED
Power LED
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android, Linux OS, Ubuntu 18.04 LTS, Debian 7.7
Dimensions and weight
Width
972.5 mm
Height
284.5 mm
Depth
71.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
17 kg
Gross Weight
19.5 kg
