iTC-1150R-EXP-M

iTC-1150R-EXP-M

Arbor
SKU: 57870000

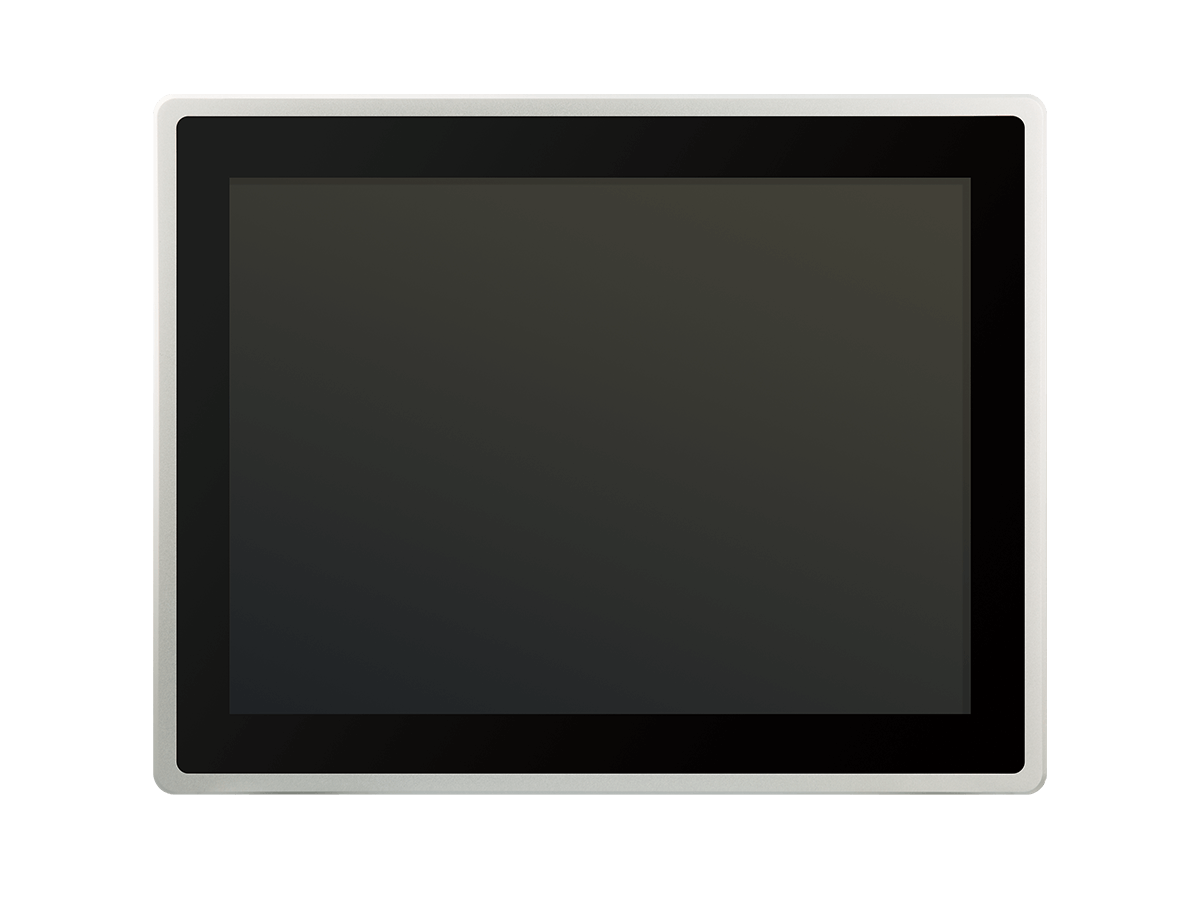

15" Fanless Industrial Panel PC, 1024x768 TFT LCD, Resistive touch, Intel Celeron J6413 1.8GHz CPU, Up to 32GB DDR4 RAM, DP/DVI-D, 4xCOM, 4xUSB, 1x2.5GbE LAN, 1xGbE LAN, Audio, 1xMiniPCIe, 1xM.2, PCIe Riser, 1x2.5" Bay, 8-bit DIO, 9-36VDC-in
Price on request
Available
Available

RAM
Price with VAT
Price on request
Price on request
Price on request
Price on request
SSD M.2
Price on request
Price on request
Price on request
Price on request
External Power Adapter
Price on request
RAM
Price with VAT
Price on request
Price on request
Price on request
Price on request
SSD M.2
Price on request
Price on request
Price on request
Price on request
External Power Adapter
Price on request

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
16:9
Brightness
350 Cd/m2
Input Interface
DisplayPort, DVI-D
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron J6413
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i225LM
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M, 2280 M
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, DVI-D, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Windows 11, Ubuntu 20.04
Dimensions and weight
Width
367 mm
Height
299 mm
Depth
70 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
5-95%
Vibration
5 ~ 500Hz, 1Grms random (w/ SSD)
Shock
Operating 10G, 11ms X,Y,Z axis (with SSD)
Dimensions
Net Weight
4.5 kg
Gross Weight
5.3 kg
Construction
