PET-7H24M

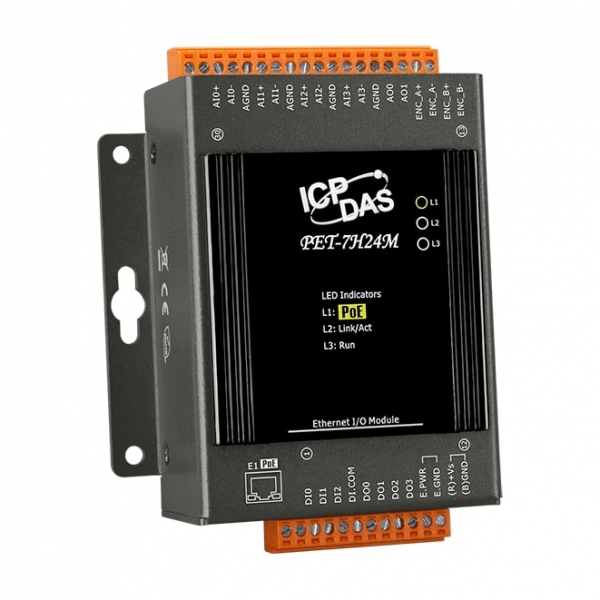

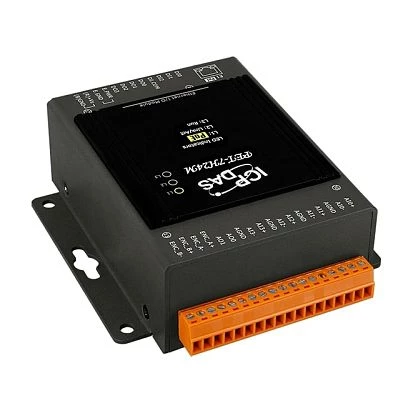

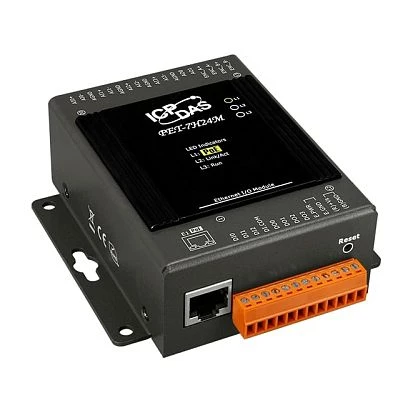

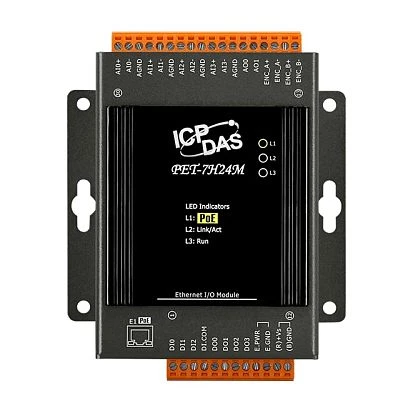

PET-7H24M

ICP DAS
SKU: 08977100
Ethernet High Speed Data Acquisition Module with 4 x AI, 2 x AO, 3 x DI, 4 x DO Channel, 1 x Encoder Input, with PoE (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Ethernet
10/100 Mbit/s
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Analog Input
Total channels of analog input
4
Number of Bits
24 Bit
Voltage range
+/-150 mV, +/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V, +/- 20 mV, +/-625 mV
Sampling rate
128 Hz
Single-Ended channels
4
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Digital Input
Total channels of digital input
3
Type
Wet contact
Level of Logic "0"
0~2 V
Level of Logic "1"
5~30 V
Sink/Source
Wet: Sink/Source
Isolation of Digital Input
2500 V
Number of channels
1
Signal Type
CW/CCW, Pulse/Dir, Quadrant
Counter capacity
32 Bit
Max frequency
6 kHz
Counter
1 kHz
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
5~30 V
Max. load current
100 mA
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
76 mm
Depth
38 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
