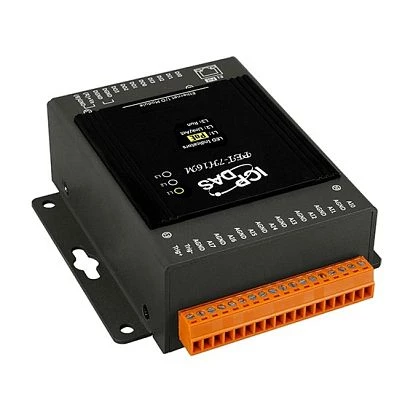

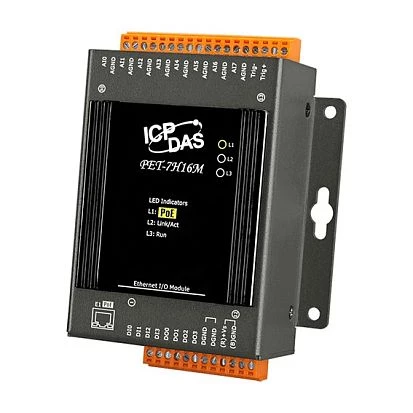

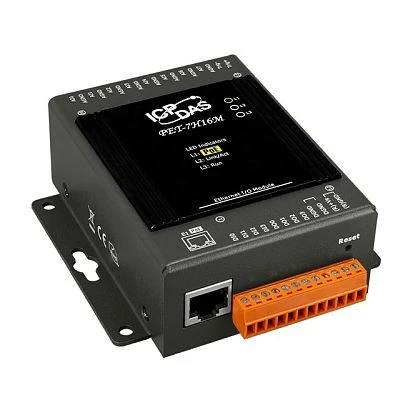

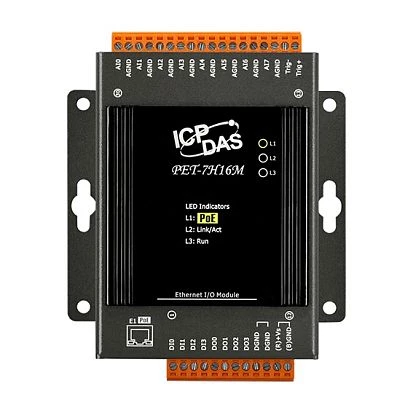

PET-7H16M
ICP DAS
SKU: 08332000
Ethernet High Speed Data Acquisition Module with 8 x AI, 4 x DI, 4 x DO Channel, with PoE (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Ethernet
10/100 Mbit/s
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-5 V, +/-10 V
Sampling rate
200 Hz
Single-Ended channels
8
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~30 V
Sink/Source
Wet: Sink/Source
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
5~30 V
Max. load current
100 mA
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
76 mm
Depth
38 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
