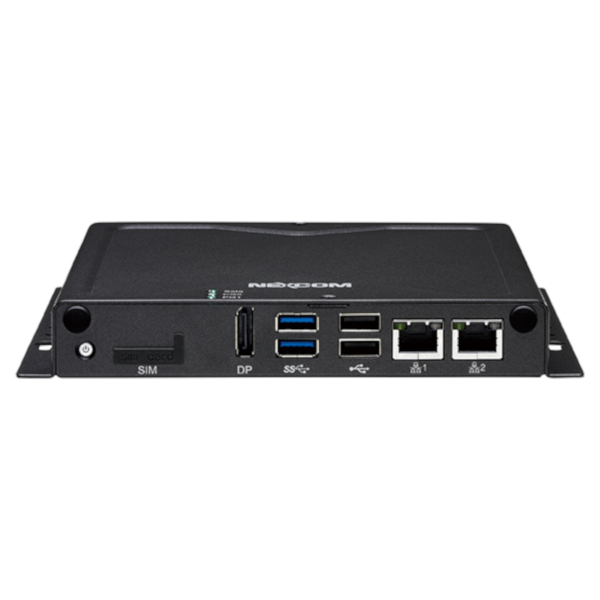

NISE-51-J3455
NEXCOM
SKU: 57117700
Fanless Embedded System NISE51-J3455, Intel Celeron J3455 2.4GHz, DDR3L, 16GB eMMC onboard, Display Port, 2xGbE LAN, 2xRS232, 1xRS422/485, 2xUSB2.0, 2xUSB 3.0, Mini-PCIe, 2xM.2 slots, Audio, TPM2.0, 12/24V DC-In, without Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron J3455
Socket
CPU onboard
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
2xRJ45 Ethernet, 4xUSB, Line Out, Display Port, SIM Card Slot, 3xDB9 Male
System Power Input
Input Voltage DC
12..24 V
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x
Dimensions and weight
Width
162 mm
Height
26 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 2Grms @ 5~500 Hz, IEC60068-2-64; Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock
50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.85 kg
Gross Weight
1.4 kg
