NISE-105U

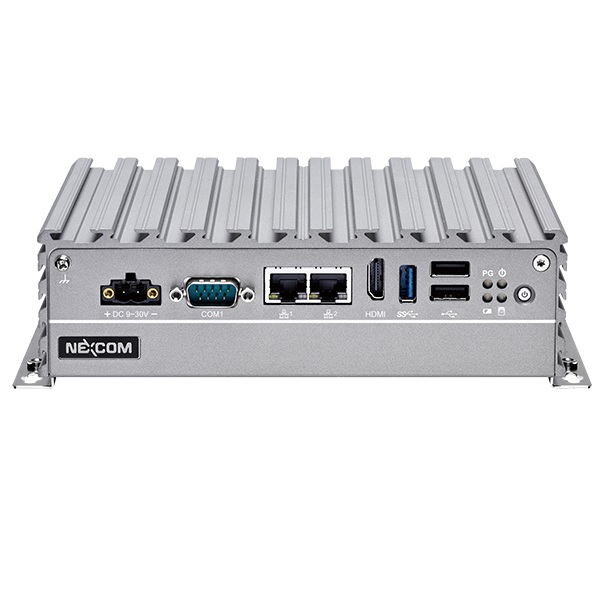

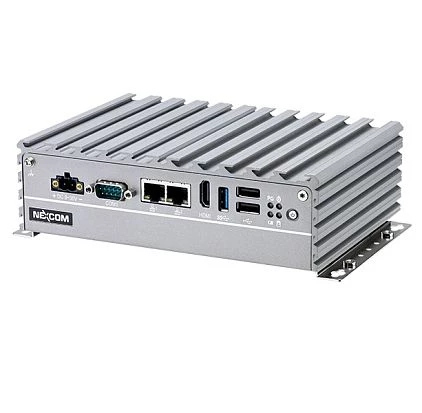

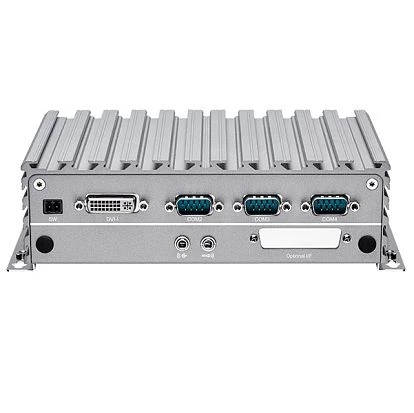

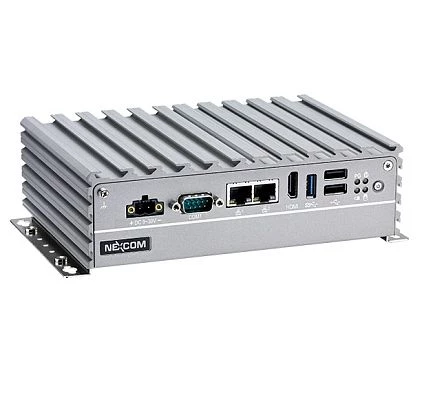

NISE-105U

NEXCOM
SKU: 08448800
Embedded Mini-PC NISE105U, Intel Celeron J1900 2.0GHz, up to 8GB DDR3L RAM, DVI-I, HDMI, 2xGbE LAN, 2xRS-232, 2xRS-232/422/485, 3xUSB, Audio, 2.5" SATA HDD Drive Bay, M.2 2242 Key B/M, Mini-PCIe, 9..30V DC-In, without Power Adapter
Price on request
Available
Available

External Power Adapter
Price with VAT
Price on request
External Power Adapter
Price with VAT
Price on request

Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DVI-I, HDMI, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
Special
Output Power
60 W
Software
Operating System Compatibility
Windows Embedded Compact 7, Windows 7, Windows Embedded Standard 7, Linux kernel 3.x, Windows 10 IoT Enterprise
Dimensions and weight
Width
185 mm
Height
54 mm
Depth
131 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
w/HDD condition - Random: 0.5Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6 Vibration protection w/M.2 & SSD condition - Random: 2Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.35 kg
Gross Weight
1.6 kg
Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DVI-I, HDMI, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
Special
Output Power
60 W
Software
Operating System Compatibility
Windows Embedded Compact 7, Windows 7, Windows Embedded Standard 7, Linux kernel 3.x, Windows 10 IoT Enterprise
Dimensions and weight
Width
185 mm
Height
54 mm
Depth
131 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
w/HDD condition - Random: 0.5Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6 Vibration protection w/M.2 & SSD condition - Random: 2Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.35 kg
Gross Weight
1.6 kg
Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DVI-I, HDMI, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
Special
Output Power
60 W
Software
Operating System Compatibility
Windows Embedded Compact 7, Windows 7, Windows Embedded Standard 7, Linux kernel 3.x, Windows 10 IoT Enterprise
Dimensions and weight
Width
185 mm
Height
54 mm
Depth
131 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
w/HDD condition - Random: 0.5Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6 Vibration protection w/M.2 & SSD condition - Random: 2Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.35 kg
Gross Weight
1.6 kg
Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DVI-I, HDMI, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
Special
Output Power
60 W
Software
Operating System Compatibility
Windows Embedded Compact 7, Windows 7, Windows Embedded Standard 7, Linux kernel 3.x, Windows 10 IoT Enterprise
Dimensions and weight
Width
185 mm
Height
54 mm
Depth
131 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
w/HDD condition - Random: 0.5Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6 Vibration protection w/M.2 & SSD condition - Random: 2Grms @ 5~500Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.35 kg
Gross Weight
1.6 kg

Documentation
NISE-105U Datasheet NISE-105U User Manual
Documentation
NISE-105U Datasheet NISE-105U User Manual
Documentation
NISE-105U Datasheet NISE-105U User Manual
Documentation
NISE-105U Datasheet NISE-105U User Manual
