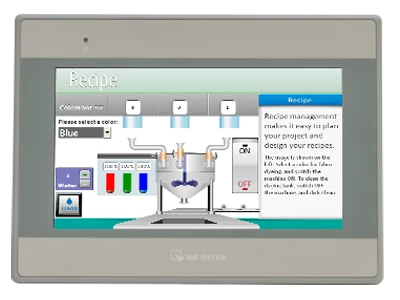

MT8071iE

MT8071iE

Weintek
SKU: 06684900
Graphic Touchscreen s with Ethernet 32Bit 600MHz RISC CPU, 7" TFT, 65K-Color Widescreen Graphic Touchscreen Plastic Enclosure
End-of-life product

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
Brightness
350 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
Memory
Default on Board Memory
0.13 GB
Installed drive
Flash Memory Capacity
128 MB
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
1
Software
Development Software
EasyBuilder Pro
Operating System Installed
Special
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
200 mm
Depth
35 mm
Height
146 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.89 kg
