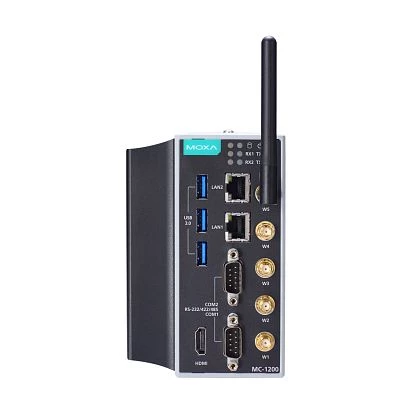

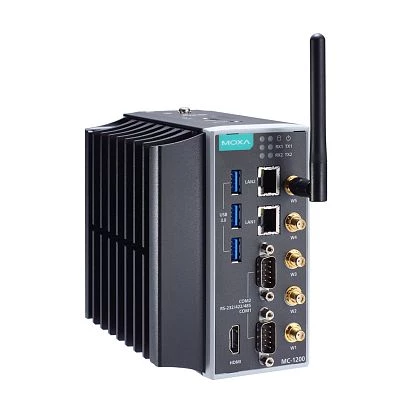

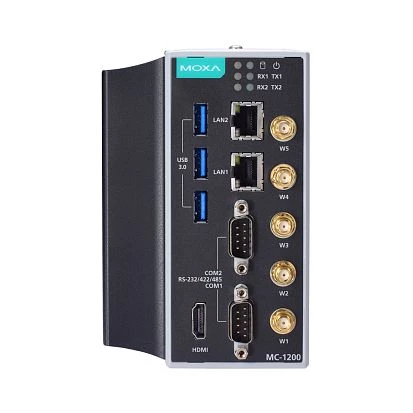

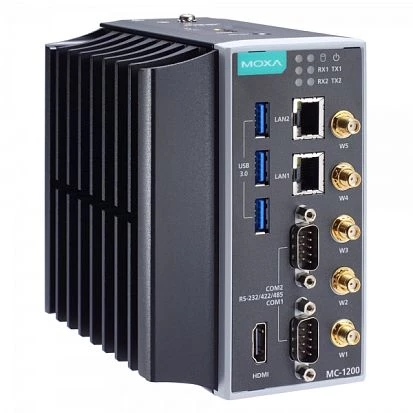

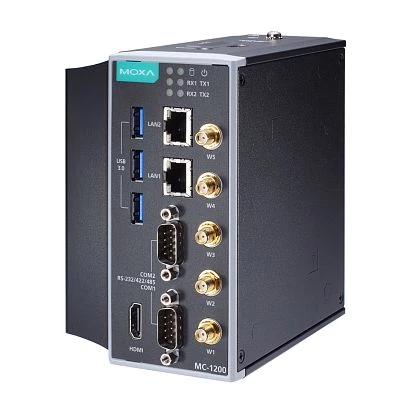

MC-1220-KL7-T-S

MOXA
SKU: 09000600
x86 embedded computer with Intel Core i7-7600U 2.8GHz CPU, 8GB RAM, HDMI, 2xGbE LAN, 2xRS-232/422/485, 3xUSB 3.0, 3x miniPCIe, 9...36VDC power, -40...+70C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Built-in, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i7-7600U
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 620
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB v3.x
3
Drive interfaces
mSATA
1
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
1
Antenna characteristics
Cellular interfaces
2G, 3G
Additional Functions
GPS
GPS
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 3xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Dimensions and weight
Width
87 mm
Height
134 mm
Depth
130 mm
Operating Conditions
Operating Temperature
-40..70 °C
Shock
IEC 60068-2-27
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 55032
Safety
UL 60950-1, EN 60950-1, EN 62368-1 (LVD), UL 62368-1
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
1.4 kg
Gross Weight
2 kg
