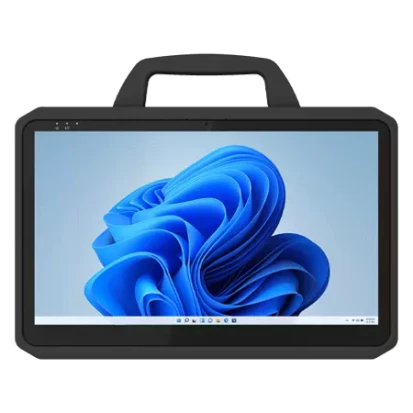

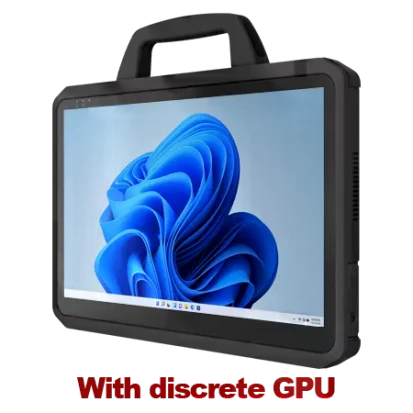

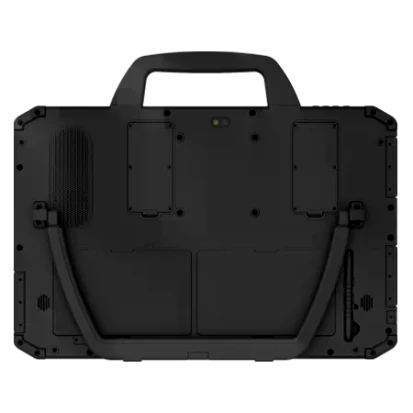

M156AD-M3
Winmate
SKU: 80189300
15.6" Rugged IP65 Tablet PC, 1920x1080, 800cd/m2, PCAP Touch, Intel Core i5-1235U CPU, 16GB DDR5 RAM, 256GB NVME SSD, 2xGbE LAN, 3xUSB 3.0, 1xUSB Type-C, MicroSD, WiFi/BT/GPS, Audio, 8/2MP Cam, 2x3220mAh Bat, 19VDC-in with 230W PSU, Win 11 IoT
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1235U
Socket
FCBGA1744
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
4
USB v3.x
4
Drive interfaces
M.2
2
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS, GLONASS
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Function Keys
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, SIM Card Slot, MicroSD card slot, USB type C
System Power Input
Input Voltage DC
19..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
230 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3220 mA*h
RunTime Battery 1
5.5 h
Battery 1 Hotswap
Yes
Additional Battery Type
Li‑ion
Additional Battery Capacity
3220 mA*h
RunTime Battery 2
5.5 h
Additional Battery Hotswap
Yes
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
387.7 mm
Height
256.1 mm
Depth
27.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
2.8 kg
Gross Weight
3.5 kg
