DA380QE-Rugged-Tablet--M
DT Research
SKU: 80167900

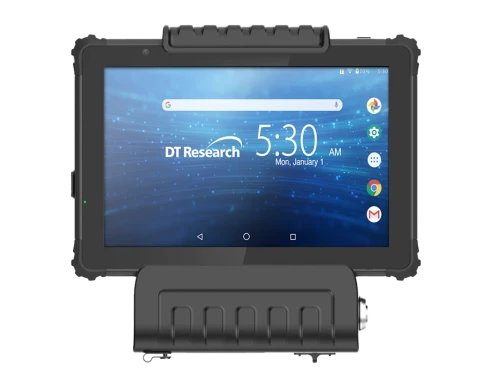

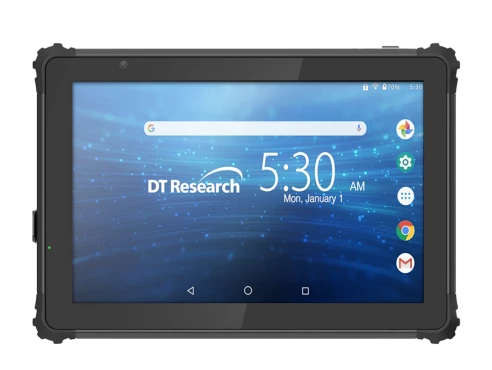

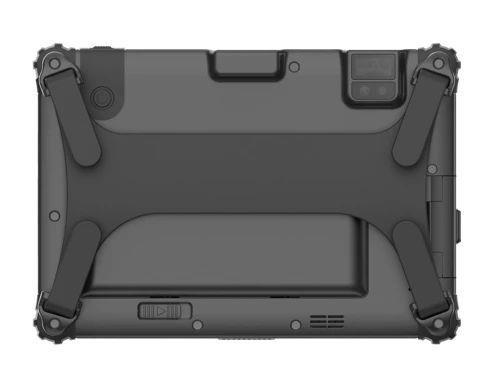

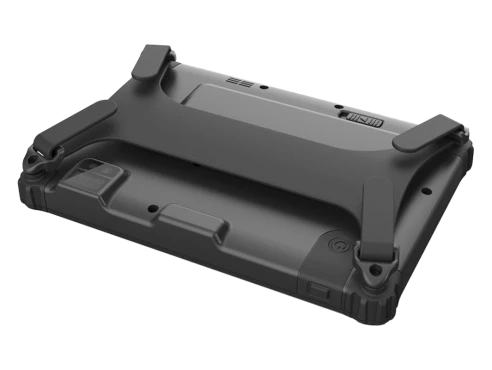

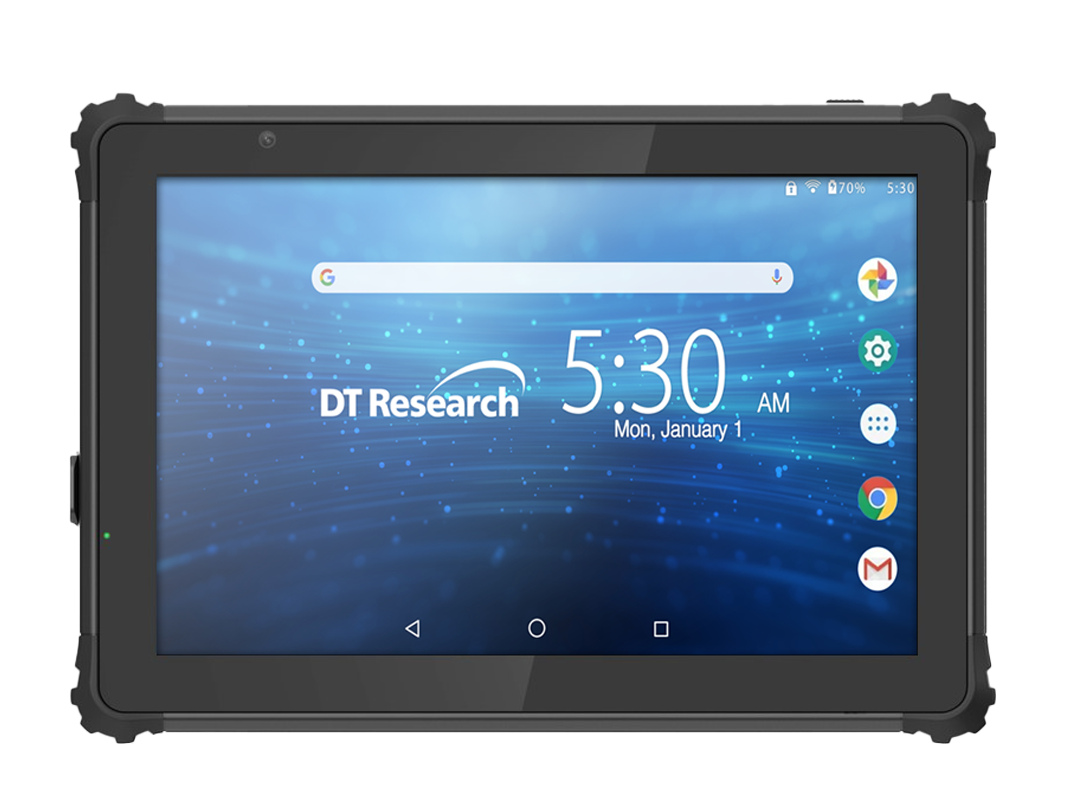

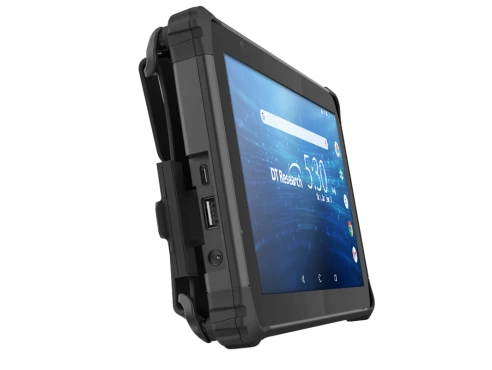

8" Rugged Tablet, IP65, 1920x1200, 850cd/m2, PCAP Touch, Qualcomm 8-Core SoC, 8GB RAM, 128GB Flash Storage, 1xUSB 3.0, 1xUSB Type-C, WiFi/BT, Opt. (LTE/GPS/2D Barcode/Cam.), 8800mAh Hot-Swap Bat., 12VDC-in w/ PSU, Android 13
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
850 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
2
USB v3.x
2
Installed drive
Drive Type
Flash
1st Storage Capacity
128 GB
Additional Functions
GPS
Optional
Barcode Scanner
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.0
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
1xUSB, Mic In, Line Out, DC Input, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-pol
Battery Capacity
8800 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Installed
Android
Dimensions and weight
Width
210 mm
Height
145.4 mm
Depth
20.4 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Temperature (Storage)
-20~+60
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
