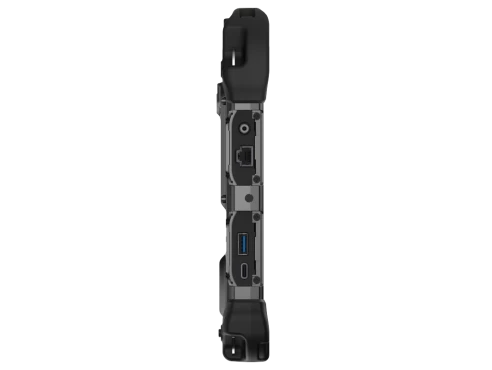

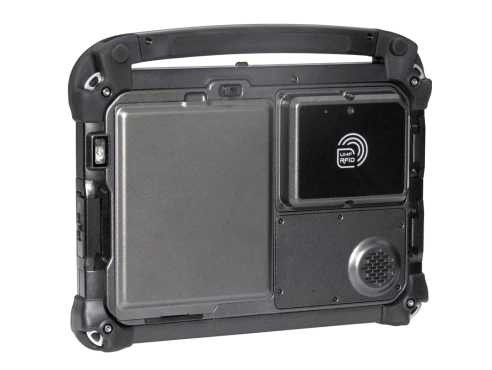

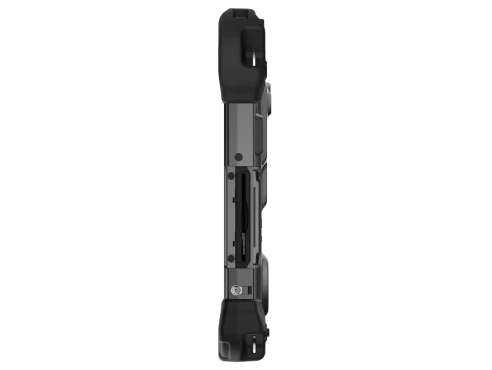

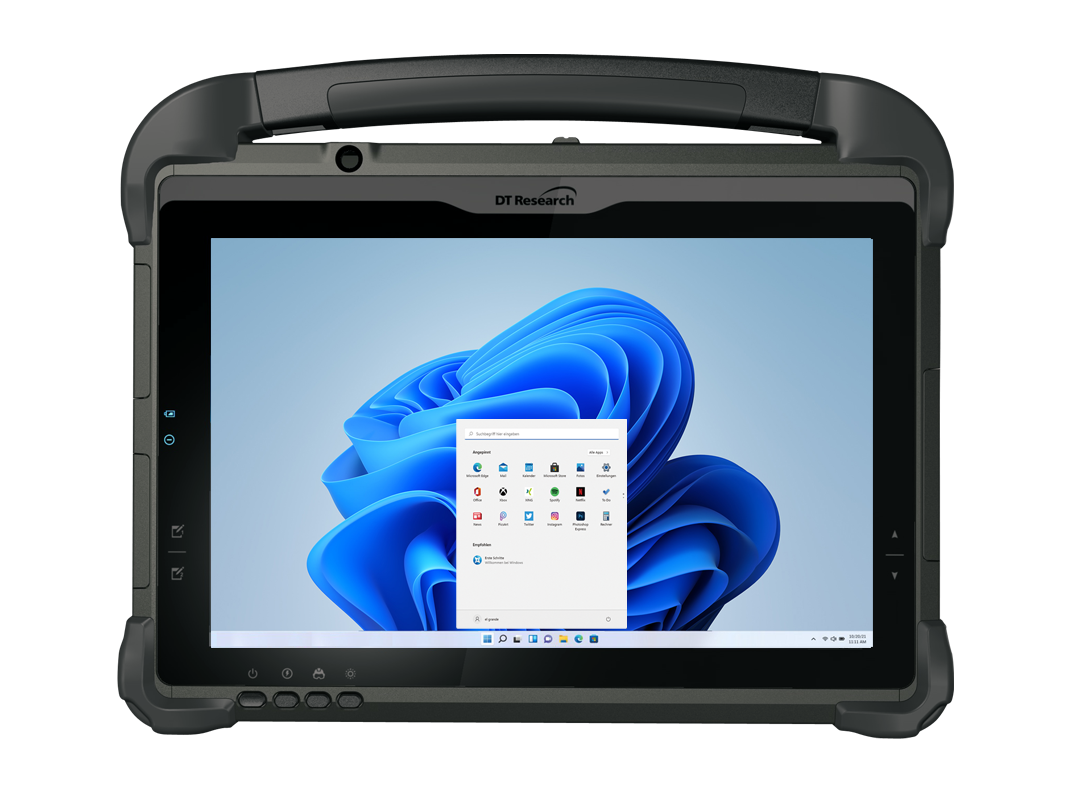

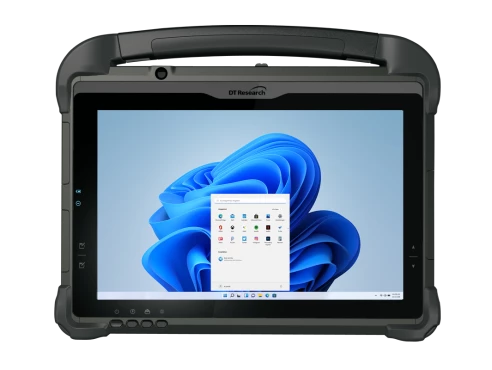

DT301YR-Rugged-Tablet--M
DT Research
SKU: 80168100
10.1" Rugged Tablet, IP65, 1920x1200, 1000cd/m2, PCAP, Intel 13th Gen Core i5/i7 CPU, Up to 32GB LPDDR5 RAM, Up to 2TB M.2 SSD, 1xGbE LAN, 1xUSB 3.0, 1xUSB-C, Smart Card, WiFi/BT, Opt. (LTE/GPS/RFID/LRBT/2D Barcode/Cam), 5400mAh Bat., 19VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Socket
FCBGA1744
CPU Support Type
Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
512 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
Smart Card Reader
Yes
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.2
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
RJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, Smart card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-pol
Battery Capacity
5400 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
198 mm
Depth
21.9 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
1.3 kg
Gross Weight
1.9 kg
