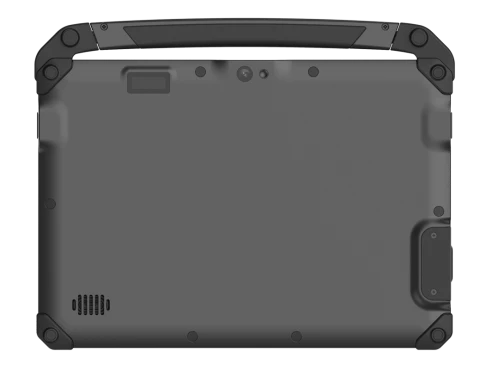

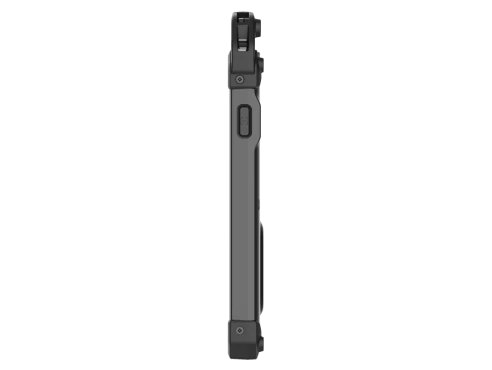

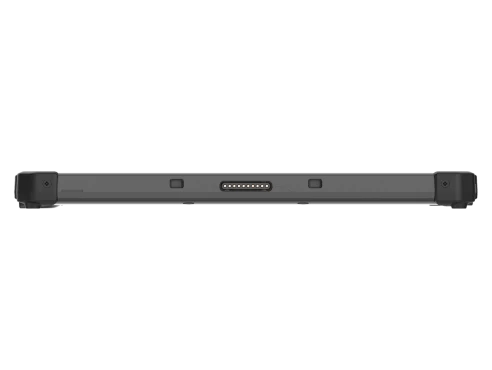

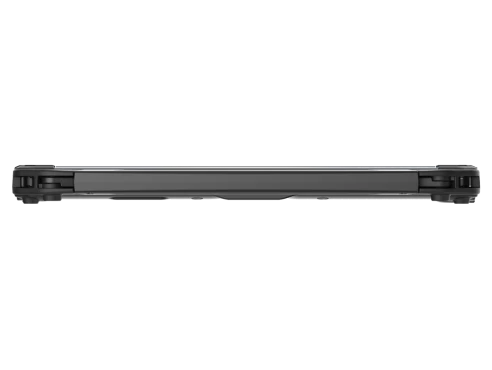

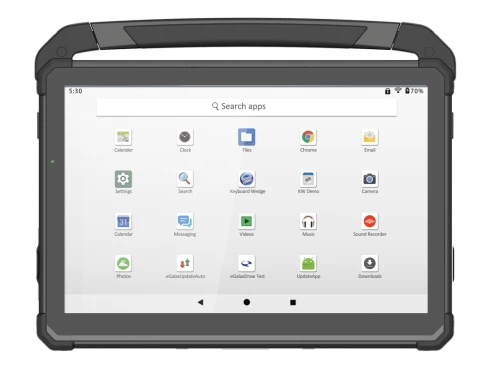

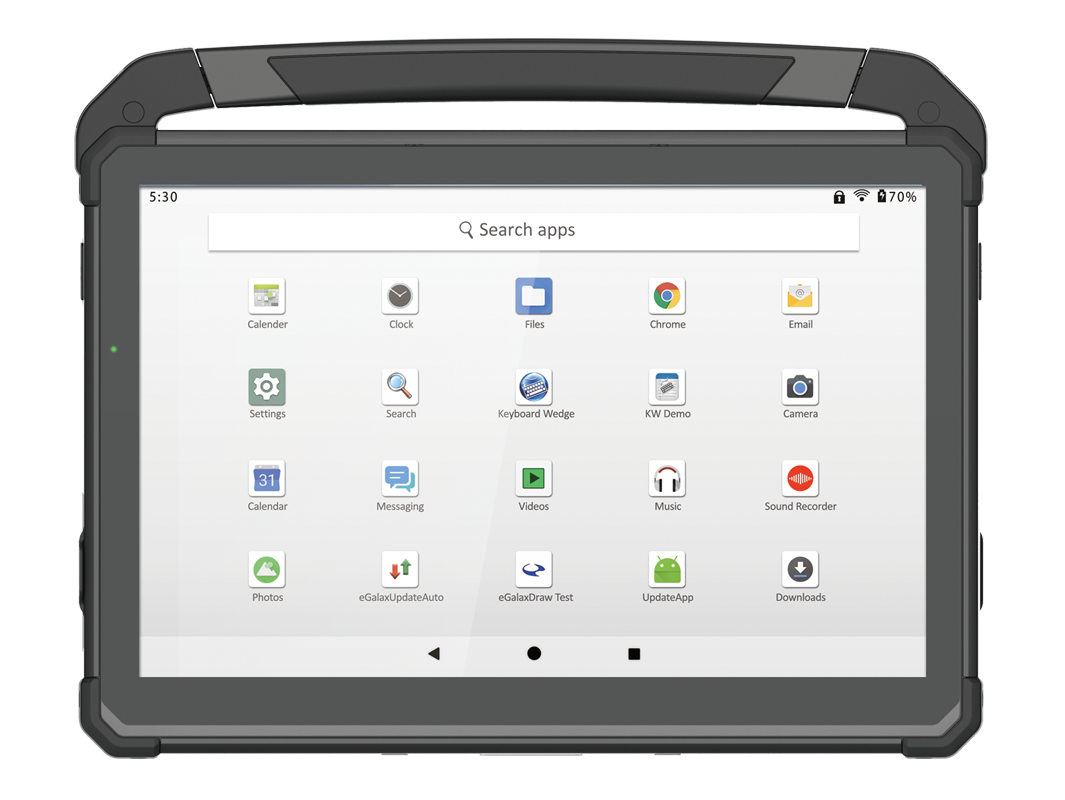

DT303CI-Rugged-Tablet--M
DT Research
SKU: 80167500
10.1" Rugged Tablet, IP65, 1920x1200, PCAP Touch, Qualcomm 8-Core SoC, 4GB RAM, 64GB Flash Storage, 1xUSB 3.0, WiFi/BT, Opt. (NFC/GPS/2D Barcode), Built-in Bat., 19VDC-in w/ PSU, Android 11
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB v3.x
1
Installed drive
Drive Type
Flash
1st Storage Capacity
64 GB
Additional Functions
Rear Camera
8 MP
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Bluetooth
v5.0
LED / Controls
Controls
On/Off
Connectors
Connectors
1xUSB, DC Input
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Battery
Battery 1 Technology
Li-pol
Software
Operating System Installed
Android
Dimensions and weight
Width
247 mm
Height
172 mm
Depth
15.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Safety
UL
Dimensions
Net Weight
1.3 kg
Gross Weight
1.9 kg
