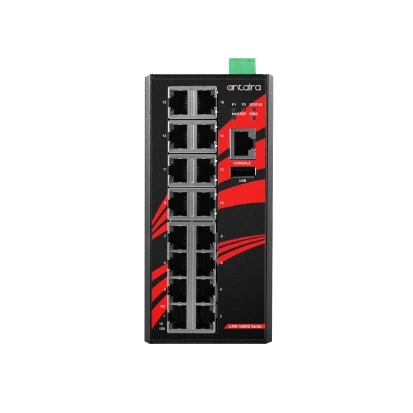

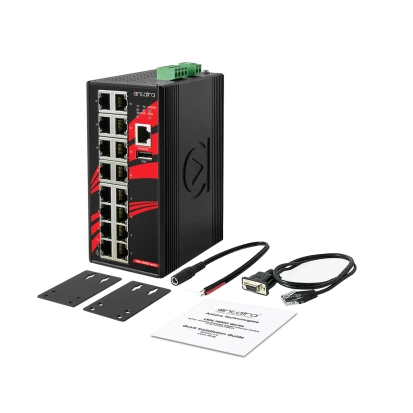

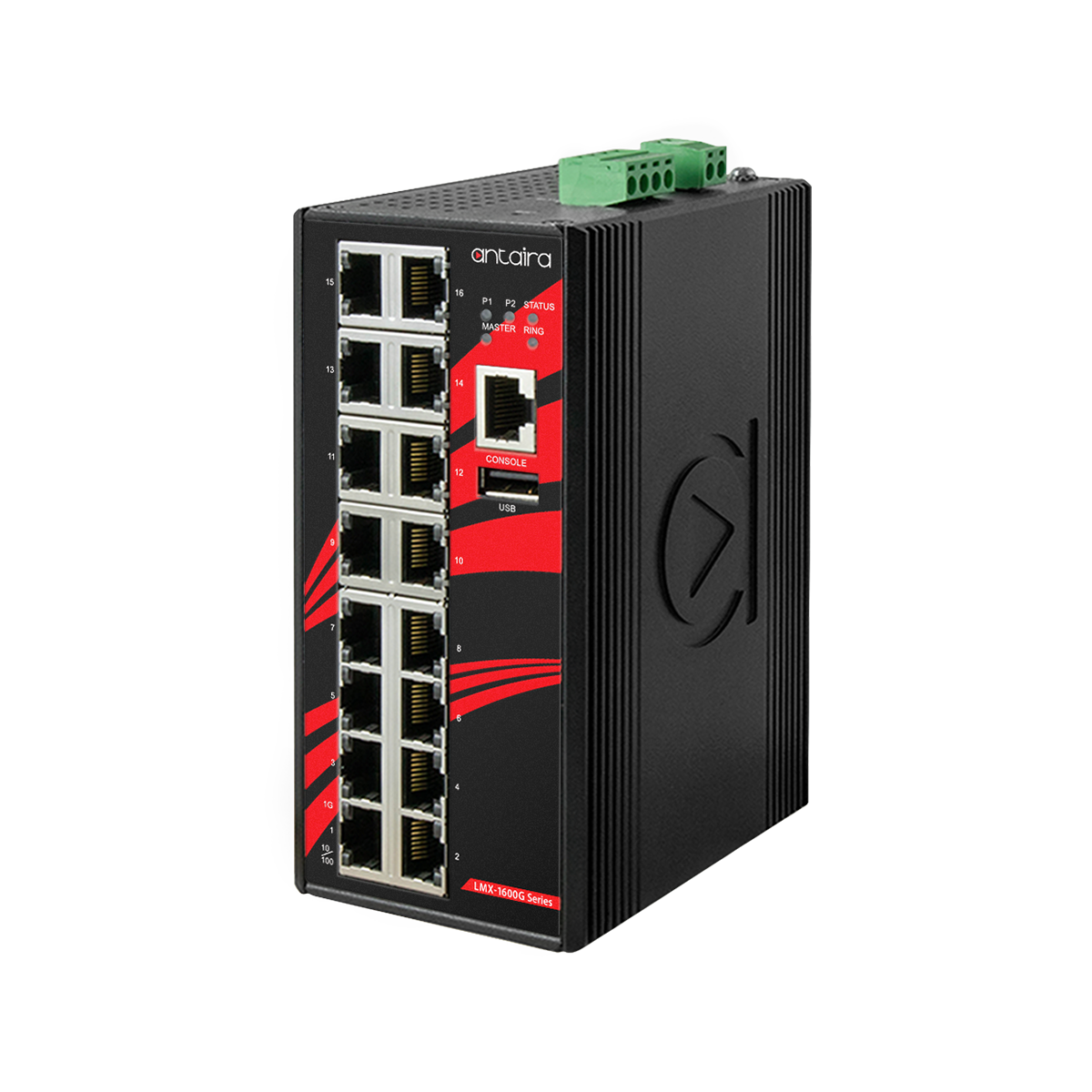

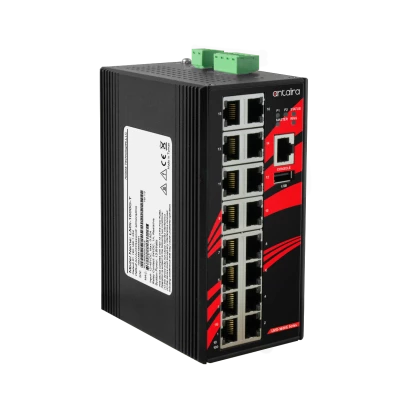

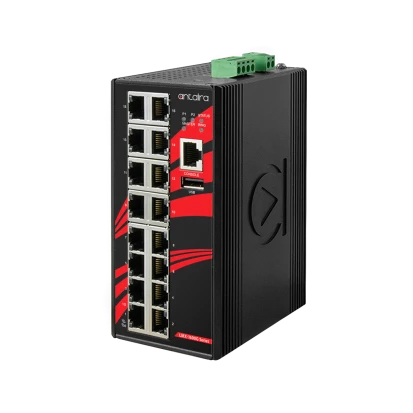

LMX-1600G
Antaira Technologies
SKU: 80230400
Industrial Layer 3 Managed Ethernet Switch, IP30, 16x10/100/1000Base-TX, 1xUSB, Power Input 12..48 VDC, Operating Temperature -10..70 C
Price on request
Available
Available
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Industrial Protocols
Modbus TCP
Managment Protocols
SNMPv1/v2c/v3, HTTP, Syslog, Telnet, DHCP, NTP, RMON, TFTP, LACP, IGMP Snooping v1/v2/v3
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, SSL
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

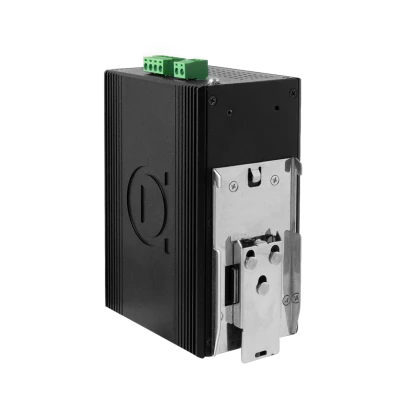

DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
67 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
5-95%
Standards and Certifications
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.2 kg
Gross Weight
1.4 kg
