G1018
Arbor
SKU: 57988600

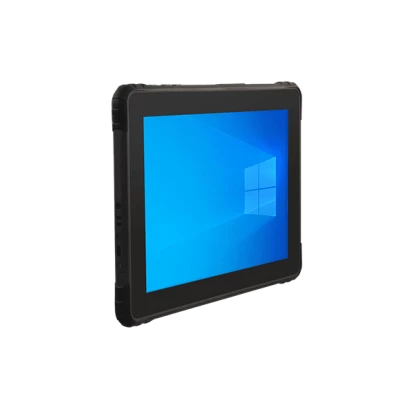

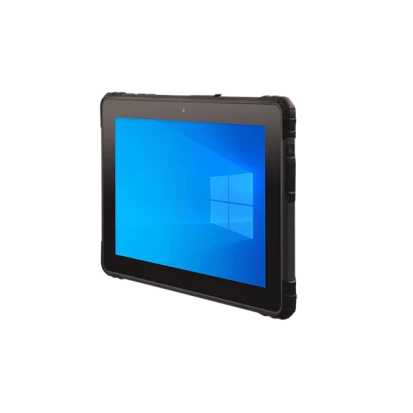

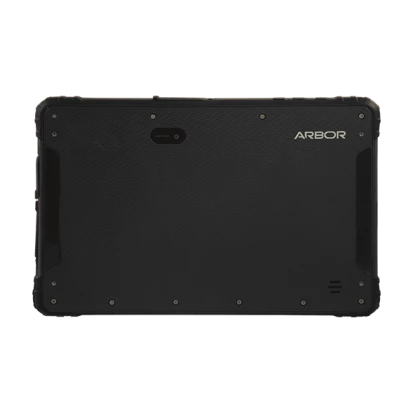

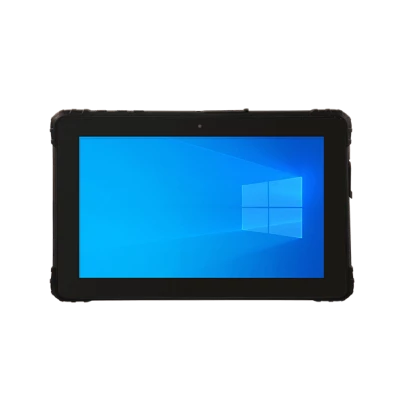

10.1" Rugged Tablet PC, IP67, 1920x1200, 500cd/m2, PCAP Touch, Intel Pentium N6415 1.2GHz CPU, 4GB DDR4 RAM, 64GB eMMC, 1xGbE LAN Opt., 1xUSB 3.1, 1xUSB Type-C PD/DP Alt., MicroSD, 5/2MP R/F Cam., WiFi/BT, Audio/Mic, 4500mAh Bat.
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis, Rubber
Protection Level of Chassis
IP67
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Pentium N6415
Socket
CPU onboard
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
5 MP
RFID Reader
Yes
NFC
Yes
Antenna characteristics
Bluetooth
v5.3
LED / Controls
Controls
On/Off, Volume Keys
Connectors
Connectors
1xUSB, MicroSD card slot, USB type C
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-ion
Battery Capacity
4500 mA*h
RunTime Battery 1
8 h
Software
Operating System Compatibility
Windows IoT Enterprise 10
Dimensions and weight
Width
268 mm
Height
183.6 mm
Depth
13.3 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
0-95%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.82 kg
Gross Weight
1 kg
