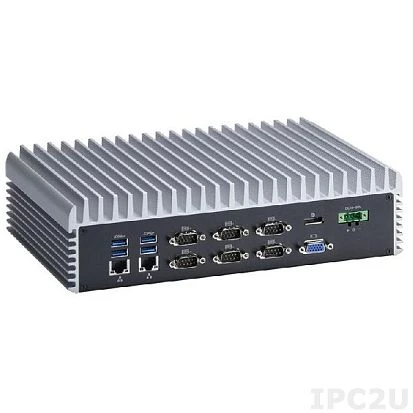

eBOX670-883-FL-DC

eBOX670-883-FL-DC

AXIOMTEK
SKU: 06653700
Fanless embedded system with Intel Core i7/i5/i3/Celeron CPU support, 6xRS-232/422/485, 4xGbE, 6xUSB 3.0, 2x2.5" Drive Bay, Audio, VGA, 2xHDMI, DisplayPort, 32 channel DI/DO, mSATA, CFast slot, w/o Power Supply
End-of-life product

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Haswell
Socket
LGA1150
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR3
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i210-IT, Intel i217LM 10/100/1000 Mbps
10/100/1000 Mbit/s
4
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
32
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Connectors
Connectors
6xDB9, DB44, DB15 VGA, 2xHDMI, 4xRJ45, 6xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS
Dimensions and weight
Width
280 mm
Height
70 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..55 °C
Vibration
CFast: 3 Grms, 5...500Hz, X, Y, Z directions
Standards and Certifications
Certifications
CE
Safety
EN 60950
Dimensions
Net Weight
3.8 kg
Gross Weight
4.76 kg
