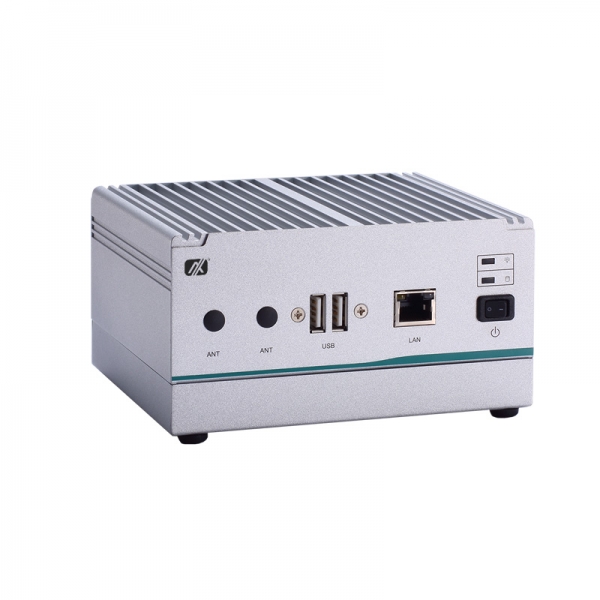

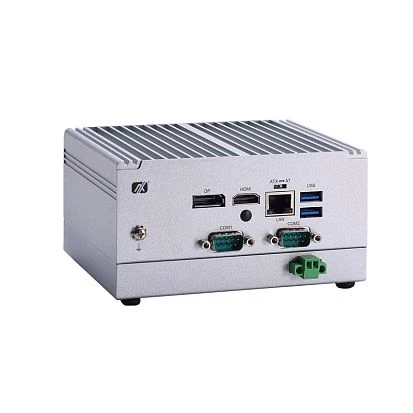

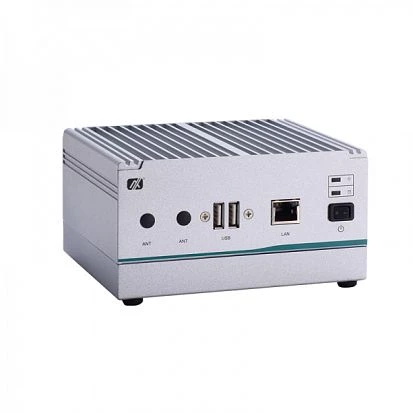

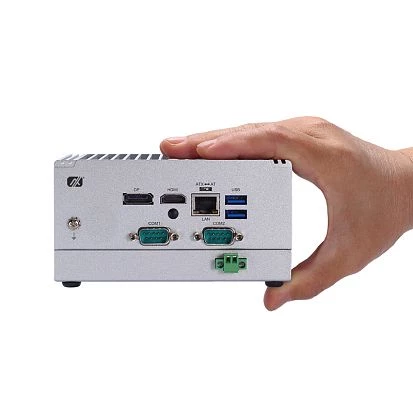

eBOX565-52R-FL-DC-4305UE
AXIOMTEK
SKU: 09473600
Fanless Embedded System with Intel Celeron 4305UE, DDR4 RAM, HDMI, DP, 2xGbE LAN, 2xCOM, 2xUSB 3.1, 2xUSB 2.0, 1x2.5" SATA HDD bay, M.2 Key E, 9 to 36VDC-in, -10...+50C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Celeron 4305UE
Socket
CPU onboard
Max CPU frequency
2 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
M.2
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
141.6 mm
Height
104 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-10..55 °C
Vibration
3 Grms with SSD (5 ~ 500Hz, X, Y, Z directions)
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.6 kg
Gross Weight
1.5 kg
Construction
