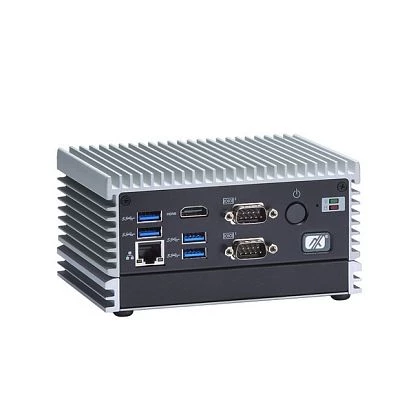

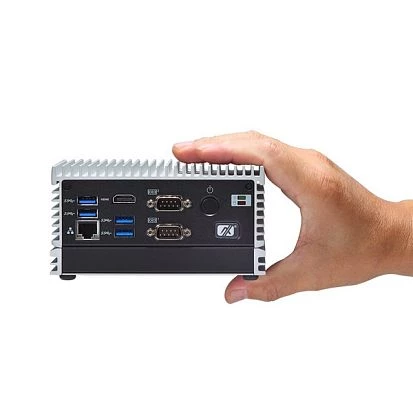

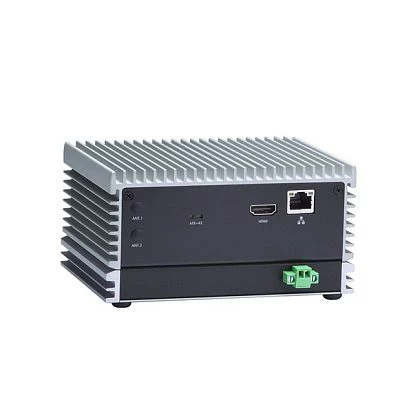

eBOX565-500-FL-6100U-DC
AXIOMTEK
SKU: 07819000
Fanless Embedded System with Intel Core i3-6100U 2.3GHz Skylake ULT SoC, 2xHDMI, 2x COM, 2x LAN, 4x USB3, 1x 2.5" SATA HDD bay, 1x mSATA, 1x Mini-PCIe, PWR IN 9-36VDC
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i3-6100U
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR4
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows 10
Dimensions and weight
Width
141.6 mm
Height
73 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
1.07 kg
Gross Weight
1.67 kg
