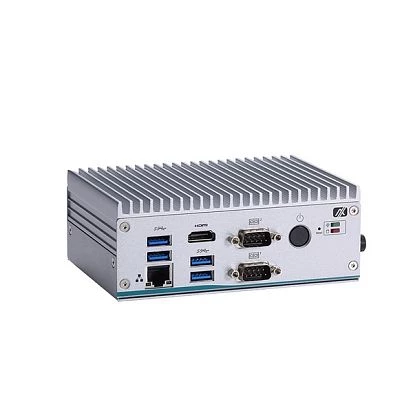

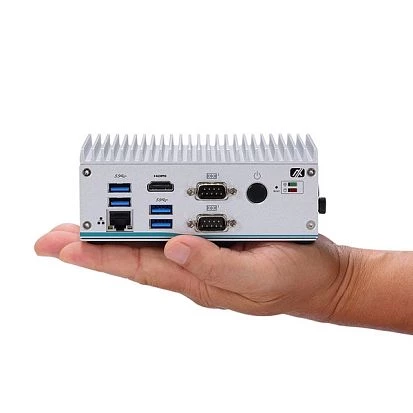

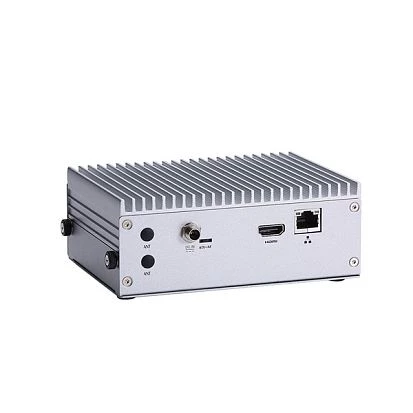

eBOX560-512-FL-DC-7100U
AXIOMTEK
SKU: 08999700
Fanless Embedded System with Intel Core i3-7100U 2.4GHz, DDR4 RAM, 2xHDMI, 2xGbE LAN, 2xCOM, 4xUSB 3.0, 1x2.5" SATA HDD bay, 1x Mini-PCIe, 12VDC-in, -10...+55
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall, Arm
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
Intel Core i3-7100U
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
141.6 mm
Height
55 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-10..55 °C
Vibration
3 Grms with SSD (5 ~ 500Hz, X, Y, Z directions)
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.5 kg
Gross Weight
1.5 kg
