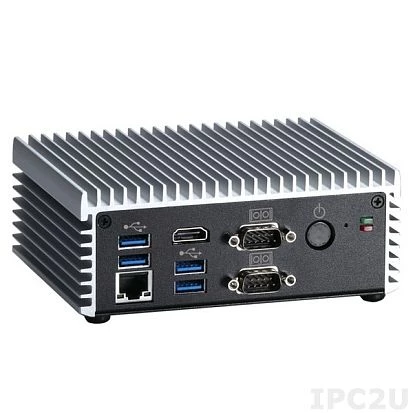

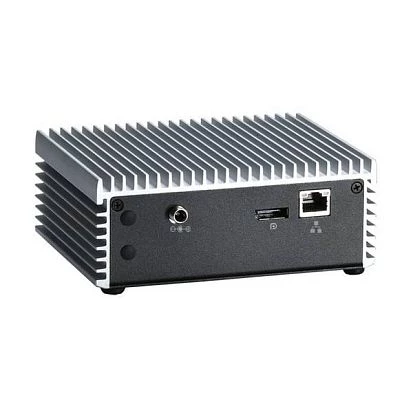

eBOX560-500-FL-DC-3955U
AXIOMTEK
SKU: 66533400
Fanless embedded system with 6th generation Intel Celeron 3955U Skylake ULT processor 2 HDMI 2 GbE LANs 4 USB 3.0 2 COMs and PCI Express Mini Card (w/o adapter & power cord)
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis, Stainless Steel
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 100
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Celeron 3955U
Max CPU frequency
2 GHz
Memory
Form-factor
DDR4
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Software
Operating System Compatibility
Windows Embedded Standard 8, Linux OS, Windows 10
Dimensions and weight
Width
141.5 mm
Height
106 mm
Depth
55 mm
Operating Conditions
Operating Temperature
-10..55 °C
Vibration
3 Grms with SSD
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.8 kg
Gross Weight
1.67 kg
