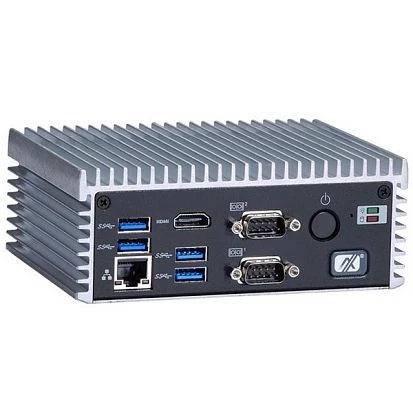

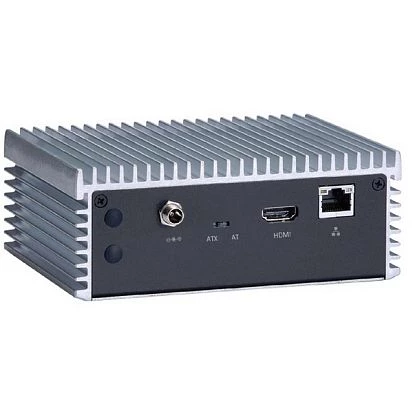

eBOX560-300-FL-N3710-EU

eBOX560-300-FL-N3710-EU

AXIOMTEK
SKU: 07107500
Fanless Embedded System with Intel Pentium N3710 1.6GHz, DDR3L RAM, 2xHDMI, 2xGbE LAN, 2xCOM, 4xUSB 3.0, 1x2.5" SATA HDD bay, 1x mSATA, 1x Mini-PCIe, AC-DC 60W Adapter w/EU power cord
End-of-life product

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Pentium N3710
Max CPU frequency
2.56 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows 10
Dimensions and weight
Width
141.5 mm
Height
55 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-20..50 °C
Vibration
3 Grms w/ SSD (5-500Hz, X, Y, Z directions)
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.8 kg
Gross Weight
1.5 kg
