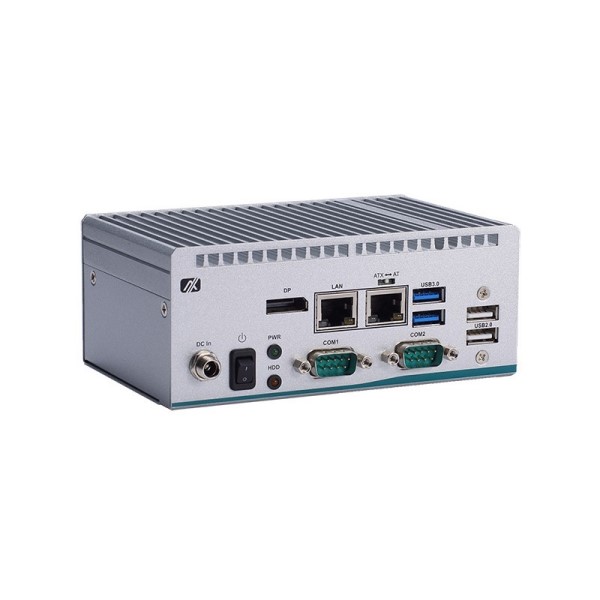

eBOX100-51R-FL-DC-3965U
AXIOMTEK
SKU: 08543600
Fanless ultra compact embedded system, chipset SoC, Intel Celeron 3965U 2.2 GHz, 1xDDR4-2133 SODIMM up to 16GB, 1x M.2 Key M 2242 (SATA), 1x M.2 Key E 2230 (WiFi), 1xSIM, 2xRS-232, 2xLAN, 4xUSB, 1xDP, power adapter 12/36 W (option)
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall, Wall VESA 100
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Celeron 3965U
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR4
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
USB Total
4
USB 2.0
2
USB v3.x
2
Extension Slots
Total
2
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, DC Input, Display Port
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
142 mm
Height
58 mm
Depth
87 mm
Operating Conditions
Operating Temperature
-10..50 °C
Vibration
3 Grms, 5 ~ 500Hz
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.15 kg
Gross Weight
1.15 kg
