D-3360-852C2
ICOP
SKU: 07372100

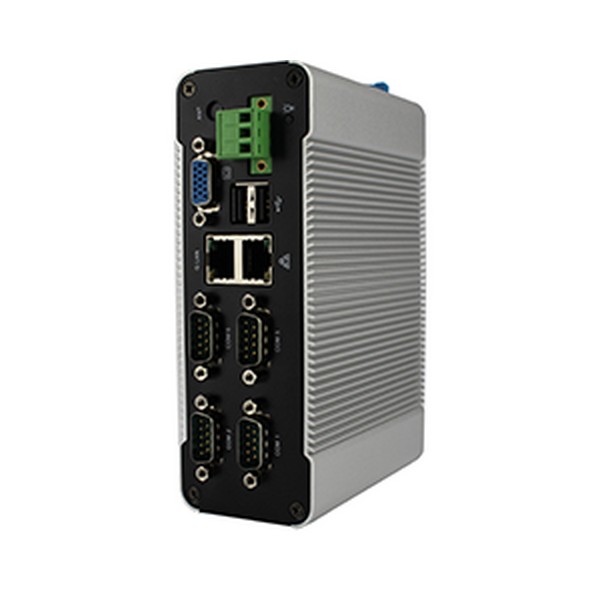

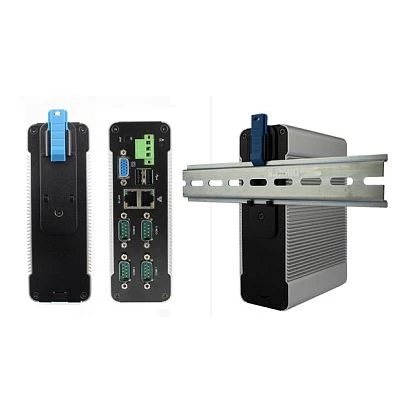

DIN rail mountable Embedded PC, Vortex86DX3 1GHz CPU, 1GB DDR3 RAM, 1xLAN, 1xGbE LAN, 2xRS-232, 2xRS-485, 3xUSB, SATA, SD slot, 8...24V DC, operating temp. 5...50 C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop
Type
Fanless
CPU
Processor Installed
Vortex86DX3
Socket
CPU onboard
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
1
10/100 Mbit/s
1
Interfaces
COM Total
4
USB Total
3
USB 2.0
3
Drive interfaces
mSATA
1
SD Slots
1
Connectors
Connectors
4xDB9, DB15 VGA, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
8 V
Dimensions and weight
Width
54 mm
Height
152 mm
Depth
104 mm
Operating Conditions
Operating Temperature
5..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
0.76 kg
Gross Weight
1 kg
