D-3360-851221C2

D-3360-851221C2

ICOP
SKU: 07474900

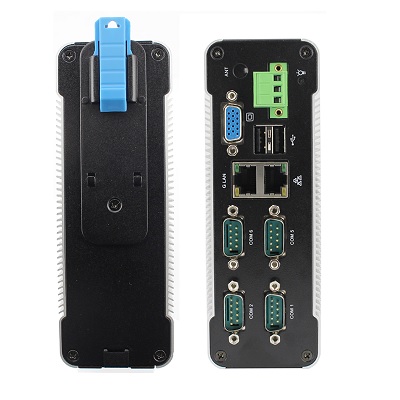

DIN rail mountable Embedded PC, Vortex86DX3 1GHz CPU, 1GB DDR3 RAM, 1xLAN, 1xGbE LAN, 2xUSB 2.0, 2xRS-232, 1xRS-422, 1xRS-485, 1xSATA, 1xSD slot, 8..24V DC, operating temp. 5..50 C
Price on request
Available
Available

Construction
Mounting Configuration
DIN-Rail mount
Type
Fanless
CPU
Processor Installed
Vortex86DX3
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
10/100/1000 Mbit/s
1
10/100 Mbit/s
1
Interfaces
USB 2.0
3
Drive interfaces
SD Slots
1
Connectors
Connectors
4xDB9, DB15 VGA, 2xRJ45, 2xUSB
System Power Input
Input Voltage DC
8 V
Software
Operating System Compatibility
Windows XP, Windows XP Embedded, Windows 7, Linux OS
Dimensions and weight
Width
152 mm
Height
104 mm
Depth
54 mm
Operating Conditions
Operating Temperature
5..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Gross Weight
0.76 kg
Construction
Mounting Configuration
DIN-Rail mount
Type
Fanless
CPU
Processor Installed
Vortex86DX3
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
10/100/1000 Mbit/s
1
10/100 Mbit/s
1
Interfaces
USB 2.0
3
Drive interfaces
SD Slots
1
Connectors
Connectors
4xDB9, DB15 VGA, 2xRJ45, 2xUSB
System Power Input
Input Voltage DC
8 V
Software
Operating System Compatibility
Windows XP, Windows XP Embedded, Windows 7, Linux OS
Dimensions and weight
Width
152 mm
Height
104 mm
Depth
54 mm
Operating Conditions
Operating Temperature
5..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Gross Weight
0.76 kg
Construction
Mounting Configuration
DIN-Rail mount
Type
Fanless
CPU
Processor Installed
Vortex86DX3
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
10/100/1000 Mbit/s
1
10/100 Mbit/s
1
Interfaces
USB 2.0
3
Drive interfaces
SD Slots
1
Connectors
Connectors
4xDB9, DB15 VGA, 2xRJ45, 2xUSB
System Power Input
Input Voltage DC
8 V
Software
Operating System Compatibility
Windows XP, Windows XP Embedded, Windows 7, Linux OS
Dimensions and weight
Width
152 mm
Height
104 mm
Depth
54 mm
Operating Conditions
Operating Temperature
5..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Gross Weight
0.76 kg
Construction
Mounting Configuration
DIN-Rail mount
Type
Fanless
CPU
Processor Installed
Vortex86DX3
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
10/100/1000 Mbit/s
1
10/100 Mbit/s
1
Interfaces
USB 2.0
3
Drive interfaces
SD Slots
1
Connectors
Connectors
4xDB9, DB15 VGA, 2xRJ45, 2xUSB
System Power Input
Input Voltage DC
8 V
Software
Operating System Compatibility
Windows XP, Windows XP Embedded, Windows 7, Linux OS
Dimensions and weight
Width
152 mm
Height
104 mm
Depth
54 mm
Operating Conditions
Operating Temperature
5..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Gross Weight
0.76 kg

Documentation
Datasheet D-336x
Documentation
Datasheet D-336x
Documentation
Datasheet D-336x
Documentation
Datasheet D-336x
