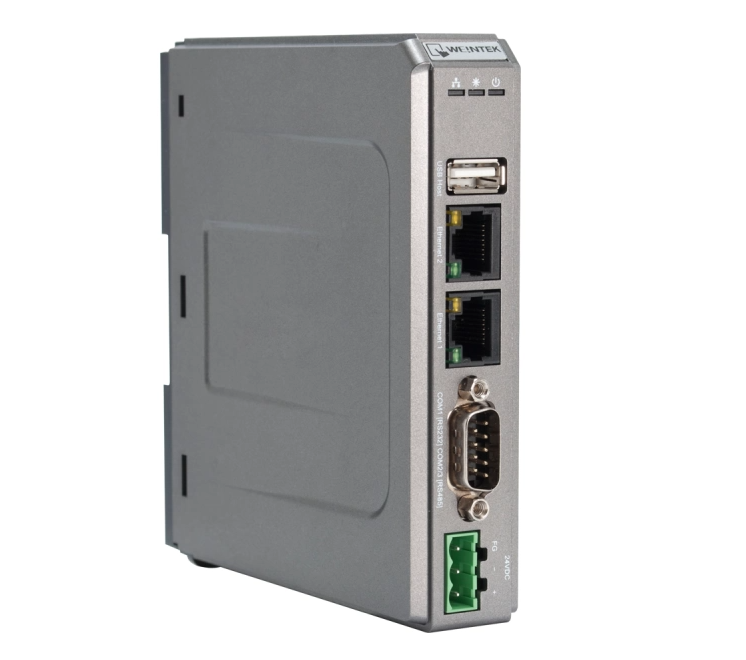

cMT-SVR-102

cMT-SVR-102

Weintek
SKU: 11191700
Cloud HMI, ARM Cortex A8 600MHz, 1024x748, 256MB RAM, 256MB Flash, real time clock, Com1: RS-232, Com2: RS-485 2w/4w, Com3: RS-485 2w, EasyAccess 2.0, 24VDC-in
End-of-life product

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP20
Memory
Default on Board Memory
0.256 GB
Installed drive
Flash Memory Capacity
256 MB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
1
Software
Development Software
CoDeSys, EasyBuilder Pro
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
27 mm
Depth
115 mm
Height
130 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.18 kg
Gross Weight
0.4 kg
