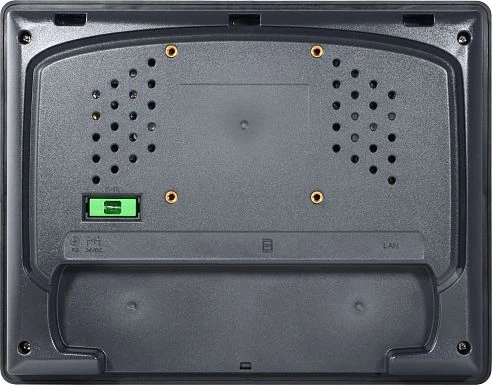

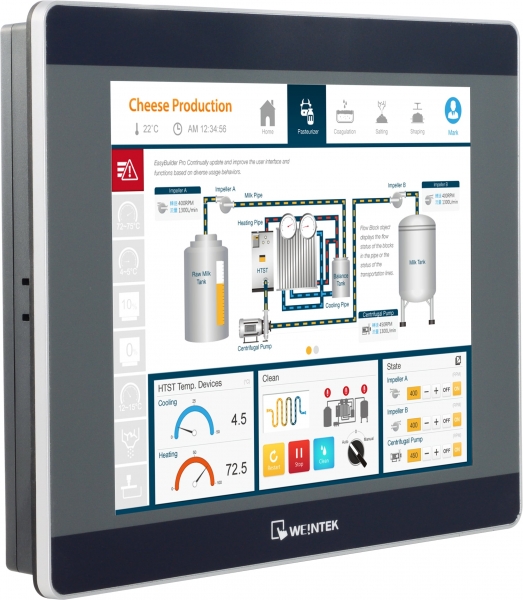

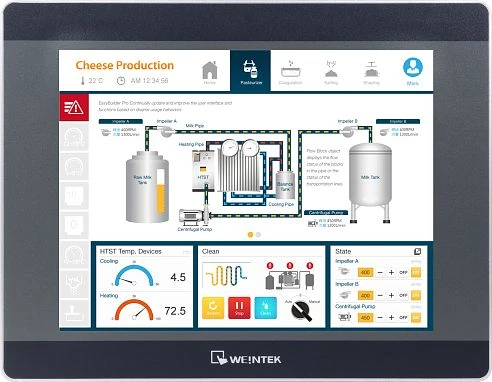

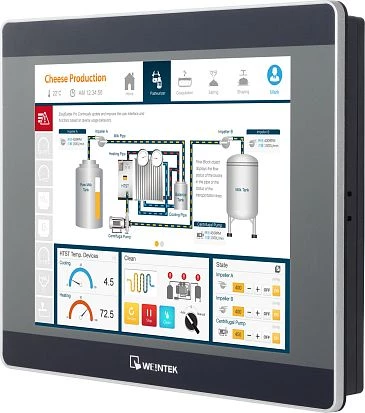

cMT-iV6

cMT-iV6

Weintek
SKU: 08516200
Client module Cloud HMI, 9.7" TFT LCD 1024x768, 1xGbE LAN, speaker mono
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
9.7 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
Memory
Default on Board Memory
1 GB
Installed drive
Flash Memory Capacity
4 MB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Software
Development Software
EasyBuilder Pro
Operating System Installed
Special
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
260 mm
Depth
36.5 mm
Height
203 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
1.6 kg
