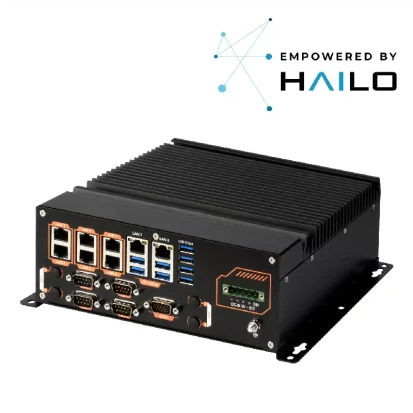

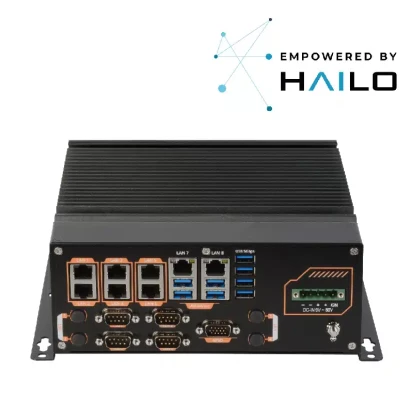

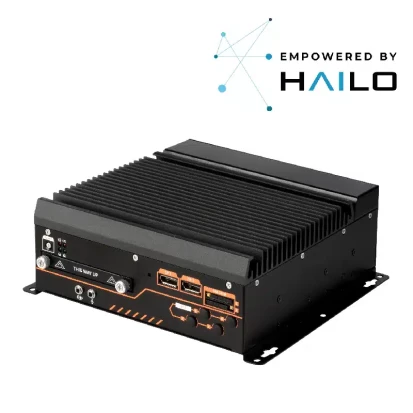

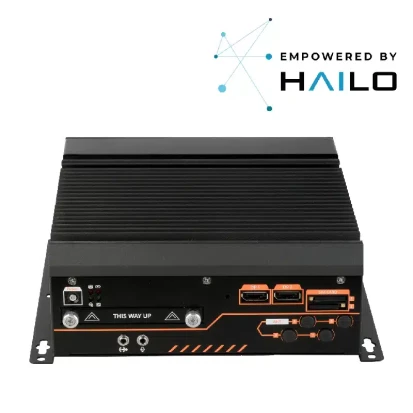

ABOX-5211-Series

ABOX-5211-Series

SINTRONES
SKU: 57863100
Embedded Fanless PC, Intel 10th Gen Core i9/i7/i5/i3/Celeron CPU, Q470E Chipset, Up 64GB DDR4 RAM, 2xDP, 8xGbE LAN, 4xCOM, 8xUSB 3.2, DIO, Audio, 2xSIM, 2xMiniPCIe, 1xM.2 3052/42, 1xM.2 2230, 3xM.2 2280, 1x2.5" Bay, 9..60VDC-In, -40..70C
Price on request
Available
Available

System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xDisplayPort
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
10/100/1000 Mbit/s
8
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB v3.x
8
Digital Input-Output
Channels of DIO
12
Drive interfaces
SATA 3
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
7
M.2
5
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED
Controls
On/Off
Connectors
Connectors
4xDB9, 8xUSB, Mic In, Line Out, 2xDisplayPort, DC input (terminal block), DB15 GPIO, 2xSIM Card Slot, 8xRJ45 Ethernet
System Power Input
Input Voltage DC
9 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11, Ubuntu 20.04
Dimensions and weight
Width
242 mm
Height
85 mm
Depth
240 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
IEC 60068-2-64, Random, 2.5G@5~500Hz. 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Shock
Operating: MIL-STD-810G, Method 516.6, Procedure, Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
3.68 kg
Gross Weight
4.1 kg
