XPPC-10-100-1
NEXCOM
SKU: 10069700

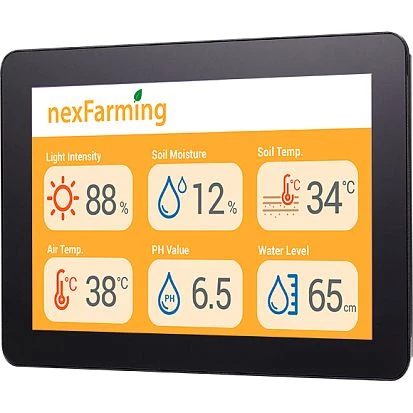

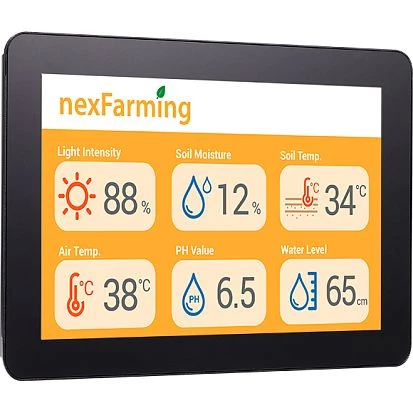

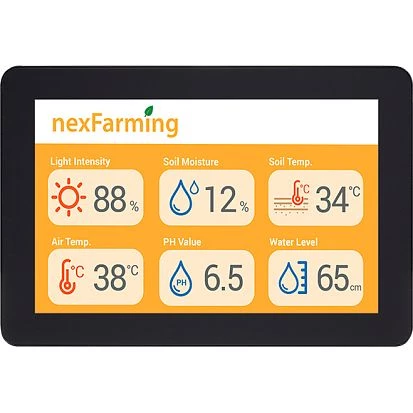

10.1" WXGA LED Fanless Panel PC, 1280x800, 400cd/m2, PCAP TouchScreen, optical bonding, Intel Celeron J3455, 1xSO-DIMM DDR3L, HDMI, 2xRJ-45, COM, 2xUSB, M.2 2242 SSD, Mini-PCIe, Audio, 19V DC-In
Price on request
Available on order
Available on order
Construction
Construction Chassis

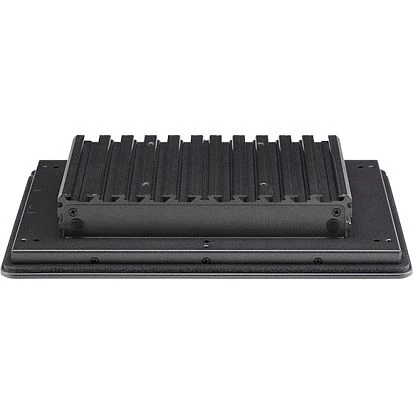

Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Aspect Ratio
16:10
Brightness
400 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron J3455
Socket
CPU onboard
Memory
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off
Connectors
Connectors

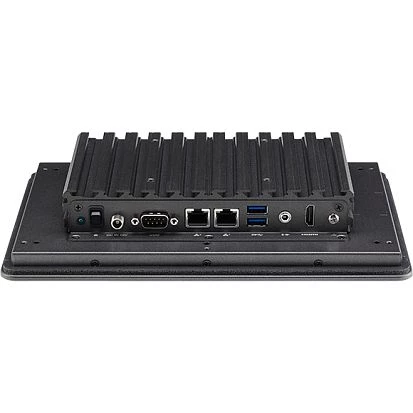

DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC Input
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
45 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
260.3 mm
Height
178.3 mm
Depth
44.65 mm
Operating Conditions
Vibration
2Grms@sine, 5~500Hz, 1hr/axis; 2.2Grms@random condition, 5~500Hz, 0.5hr/axis (non-operating)
Shock
20g peak acceleration (11 msec. duration)
Standards and Certifications
Certifications
CE, FCC Class A
Safety
EN 62368-1 (LVD)
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
2 kg
Gross Weight
3 kg
