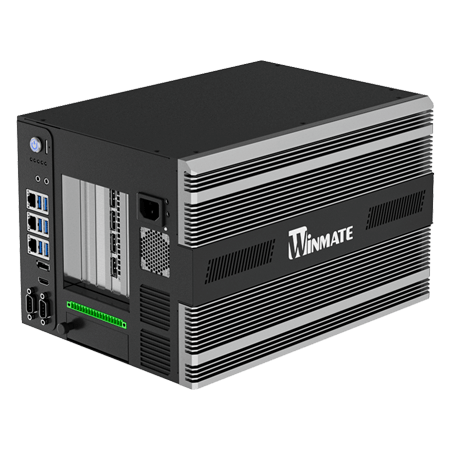

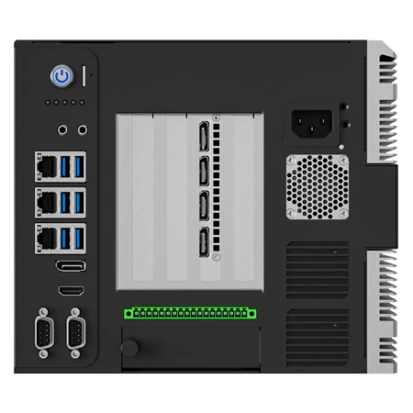

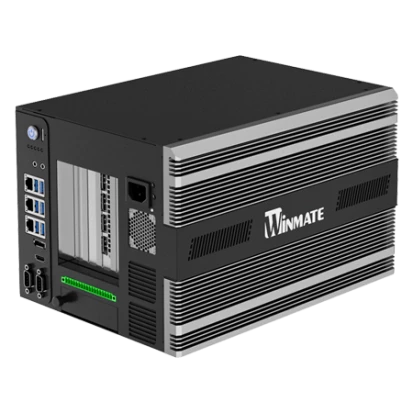

WNAI-E800
Winmate
SKU: 57907900
Industrial Edge AI System, Intel Core i7-14700TE CPU, R680E, 16GB DDR5 RAM, 512GB NVME SSD, NVIDIA GPU Opt., DP, HDMI Opt., 3x2.5GbE LAN, 6xUSB 3.2, 2xCOM, 16-bit DIO, 1xM.2 Key-B, 1xM.2 Key-E, 1xPCIe x16, 1xPCIe x4, 1xPCIe x8, Audio, 100-240VAC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fans
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i7-14700T
Socket
LGA1700
CPU Support Type
Core i7, Core i9
Max CPU frequency
5.2 GHz
Memory
Form-factor
DDR5
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
DisplayPort
Ethernet
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
16
Isolation DIO
Yes
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
512 GB
Extension Slots
Total
6
PCI Express x16
1
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
SIM Card slots
Yes, 1, Nano SIM
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, AC Input, Display Port, DIO (terminal block)
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Internal
Software
Operating System Compatibility
Ubuntu, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
230 mm
Height
200 mm
Depth
323.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
7.85 kg
Gross Weight
9.4 kg
