VTC-1021-C2K
NEXCOM
SKU: 07833300

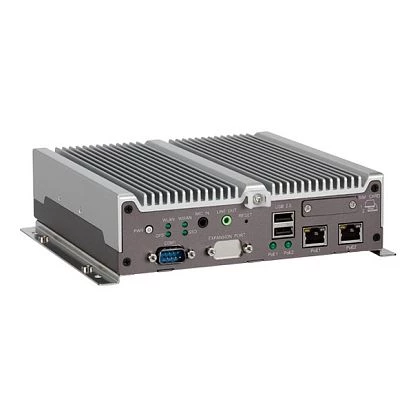

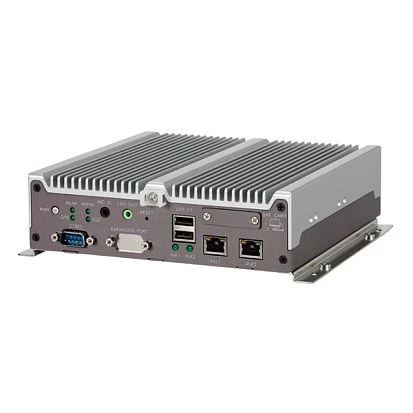

Fanless In-Vehicle Computer,Intel Atom x5-E3940 1.8GHz, 4GB DDR3L,1x2.5'' SSD/mSATA,VGA+HDMI,2xGLAN & 2xPoE,2xRS-232,3x mini-PCIe,U-blox M8N GPSmodule,1xRS422/485,1xCAN2.0B,3xDI&DO,3x USB,12V/2A DC output
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
Processor Installed
Intel Atom E3940
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
Channels of DIO
6
Drive interfaces
mSATA
1
SD Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
GPS
GPS
Connectors
Connectors

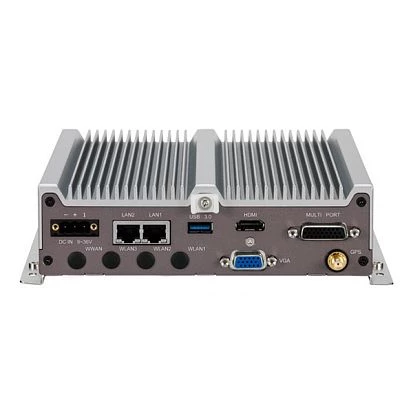

DB9, DB15 VGA, HDMI, 4xRJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input, DB26
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
180 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
SSD: 1g @ 5~500 Hz
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
1.7 kg
Gross Weight
1.7 kg
