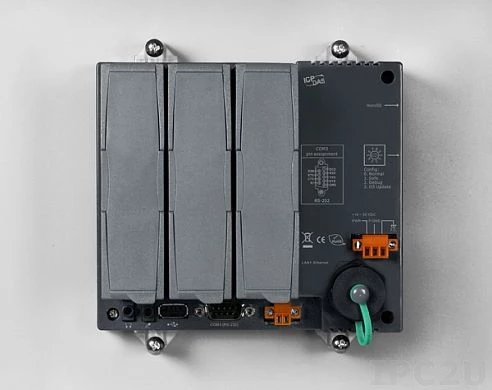

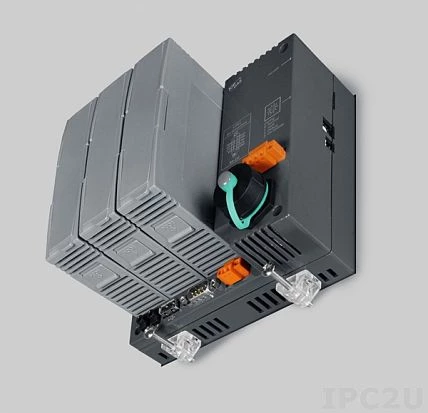

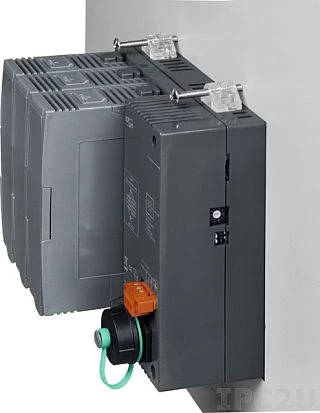

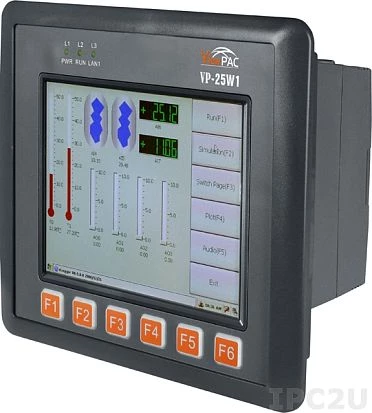

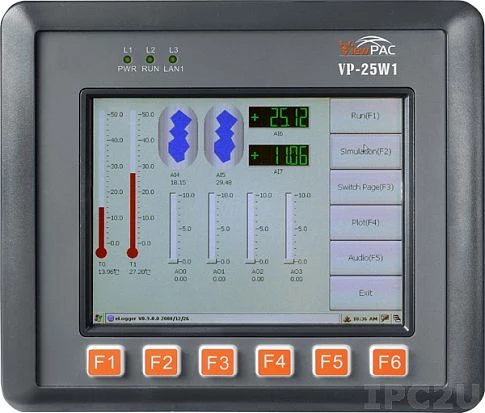

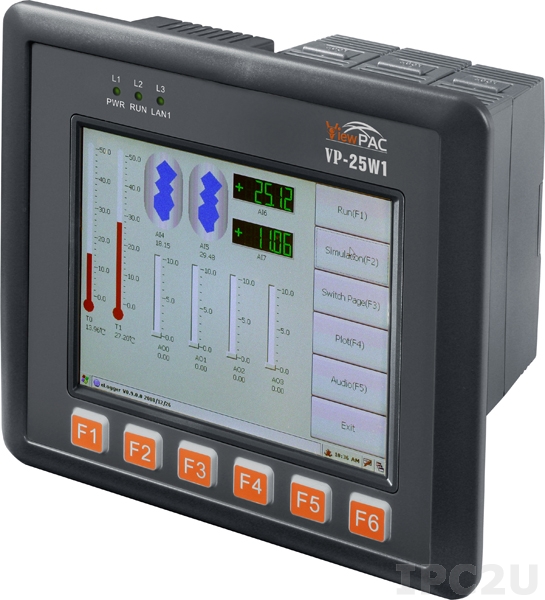

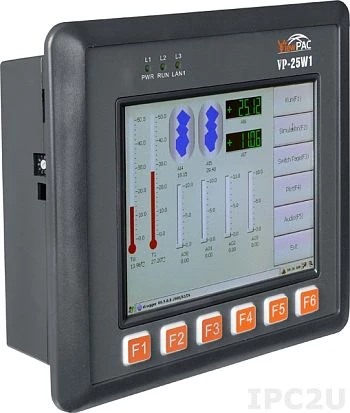

VP-25W1-EN
ICP DAS
SKU: 05404800
VIEW PAC+TOUCH 5.7'' TFT LCD Panel PC with Win CE 5.0, Risc PXA 270 520Mhz CPU
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel
Display
Display Type
LCD TFT
Diagonal
5.7 "
Maximum resolution
640x480 Dots
CPU
Processor Installed
Intel PXA270
Max CPU frequency
0.52 GHz
Memory
Default on Board Memory
0.13 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
96 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
2 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
3
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows CE 5.0
Programming Method
C/C++
Development Software
Embedded Visual C++, Visual Studio .NET
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Dimensions and weight
Width
182 mm
Depth
125 mm
Height
158 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
1.59 kg
