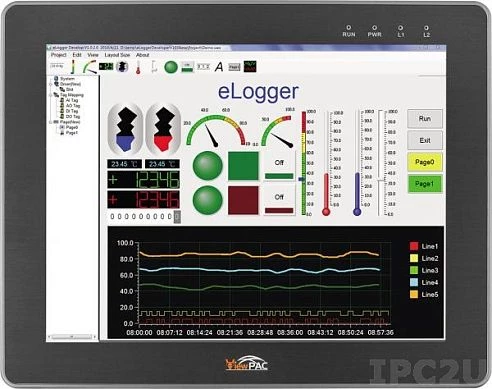

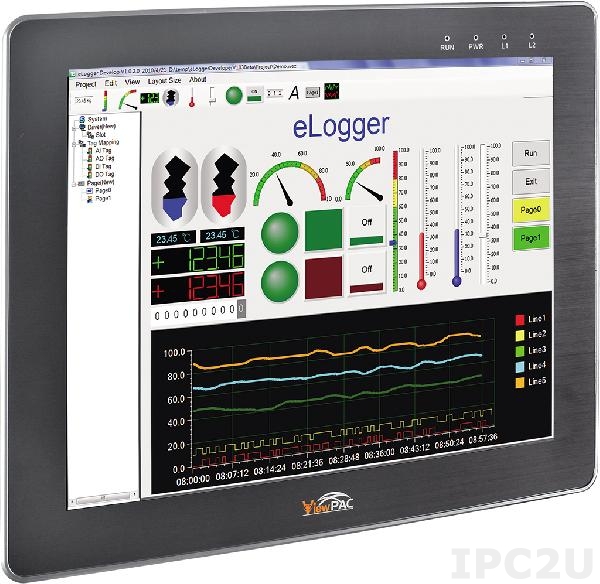

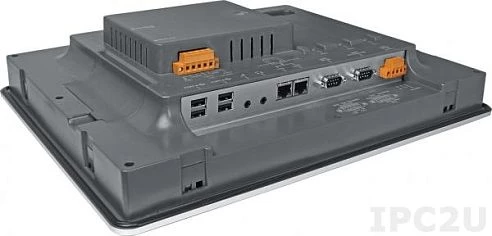

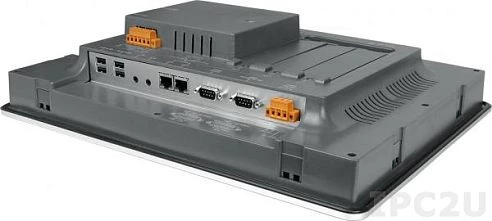

iPPC-6631-WES7
ICP DAS
SKU: 06697600
15" Panel PC with Atom N2600 CPU and WES7 OS
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
CPU
Processor Installed
Intel Atom N2600
Max CPU frequency
1.6 GHz
Memory
Default on Board Memory
2 GB
SRAM
128 kB
Installed drive
Flash Memory Capacity
16 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
8 GB
Drive interfaces
CompactFlash Slots
1
Expansion Module
Quantity of Slots
3
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows Embedded Standard 7
Programming Method
C/C++
Development Software
Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Dimensions and weight
Width
381 mm
Depth
139 mm
Height
305 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Gross Weight
7 kg
