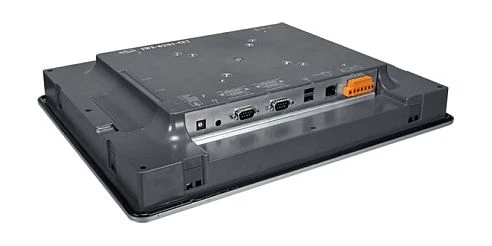

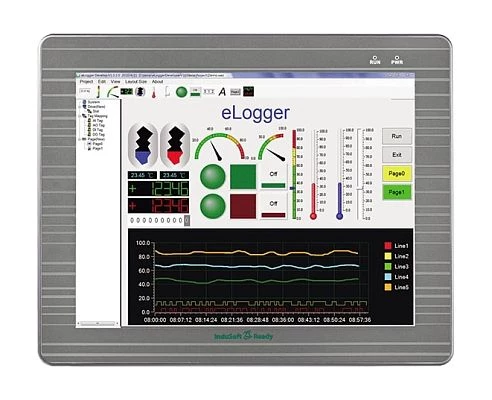

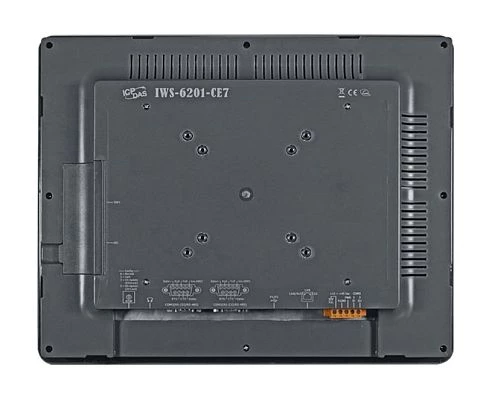

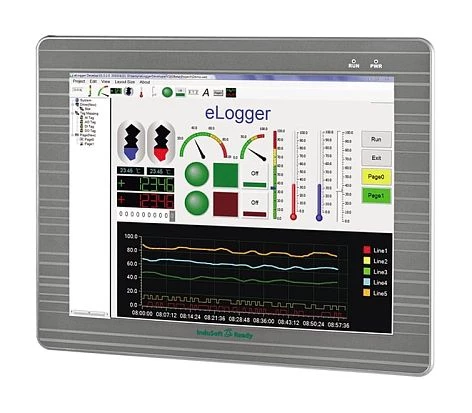

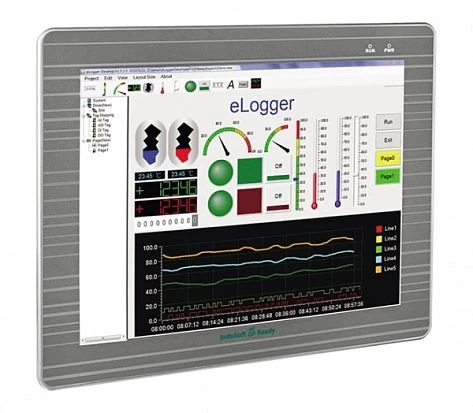

IWS-6201-CE7-1500
ICP DAS
SKU: 09406000
InduSoft based PAC with 300 tags, 15" LCD 1024x768, resistive touch, Cortex-A8 1GHz CPU, 256 MB SDRAM, 1xGB LAN, 3xCOM, 2xUSB 2.0, Windows CE 7.0 OS, -10...+60
Price on request
Available
Available
Construction
Mounting Configuration
Panel, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
CPU
Processor Installed
ARM Cortex A8
Memory
Default on Board Memory
0.5 GB
Drive interfaces
MicroSDHC
1
SD Slots
1
Software
Operating System Installed
Windows Embedded Compact 7
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-485
1
RS-232/422/485
2
USB Total
2
Dimensions and weight
Width
305 mm
Depth
65 mm
Height
381 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
Construction
Mounting Configuration
Panel, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
CPU
Processor Installed
ARM Cortex A8
Memory
Default on Board Memory
0.5 GB
Drive interfaces
MicroSDHC
1
SD Slots
1
Software
Operating System Installed
Windows Embedded Compact 7
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-485
1
RS-232/422/485
2
USB Total
2
Dimensions and weight
Width
305 mm
Depth
65 mm
Height
381 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
Construction
Mounting Configuration
Panel, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
CPU
Processor Installed
ARM Cortex A8
Memory
Default on Board Memory
0.5 GB
Drive interfaces
MicroSDHC
1
SD Slots
1
Software
Operating System Installed
Windows Embedded Compact 7
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-485
1
RS-232/422/485
2
USB Total
2
Dimensions and weight
Width
305 mm
Depth
65 mm
Height
381 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
Construction
Mounting Configuration
Panel, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
CPU
Processor Installed
ARM Cortex A8
Memory
Default on Board Memory
0.5 GB
Drive interfaces
MicroSDHC
1
SD Slots
1
Software
Operating System Installed
Windows Embedded Compact 7
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-485
1
RS-232/422/485
2
USB Total
2
Dimensions and weight
Width
305 mm
Depth
65 mm
Height
381 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
Documentation
Documentation
Documentation
Documentation
