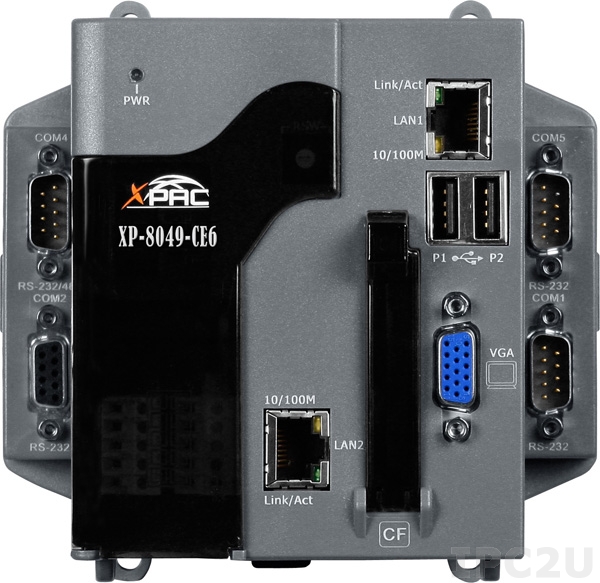

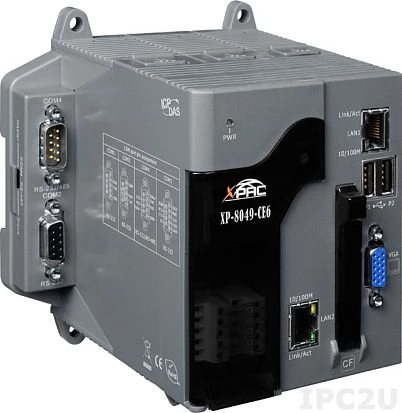

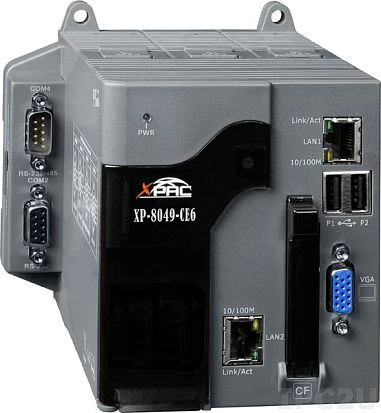

XP-8049-CE6
ICP DAS
SKU: 05654900
PC-compatible AMD LX 800 500MHz Industrial Controller, 4Gb Flash, 512 MB DDR, 5xRS-232/485, 2xEthernet, Win CE 5.0, with no Expansion Slots, OS Windows Embedded CE 6.0, InduSoft
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
AMD LX800
Max CPU frequency
0.5 GHz
Memory
Default on Board Memory
0.5 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
4 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
2 GB
Drive interfaces
CompactFlash Slots
1
Software
Operating System Installed
Windows CE 6.0
Programming Method
C/C++, IEC 61131-3
Development Software
InduSoft Web Studio 6.1, Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
5
RS-232
3
RS-485
1
RS-232/485
1
USB Total
2
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
137 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
