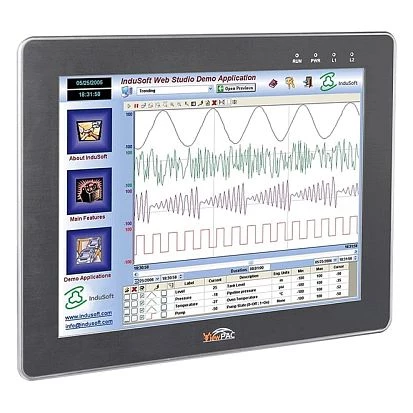

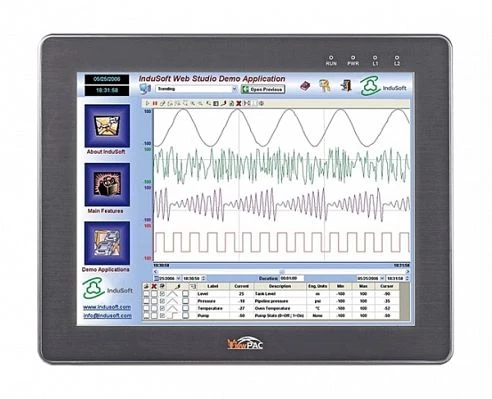

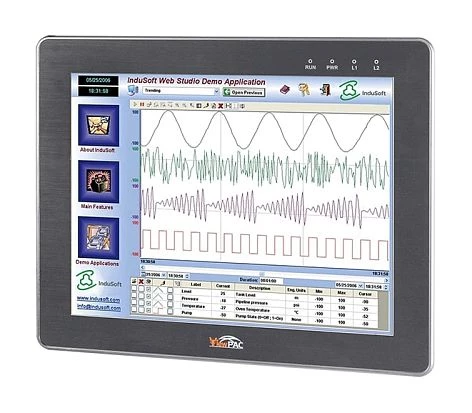

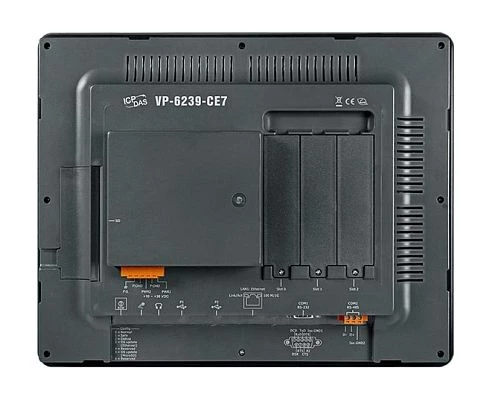

VP-6239-CE7
ICP DAS
SKU: 09104300
15" LCD InduSoft (300 tags) Based ViewPAC, Cortex-A8 1GHz, 128KB MRAM, 16KB EEPROM, 256MB Flash, 4GB microSDHC, with 3 I/O slots (WinCE 7.0) (RoHS), IP65 Compliant Front Panel
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Chassis
IP65, NEMA4
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
Drive interfaces
SD Slots
1
Software
Operating System Installed
Windows CE 7.0
Programming Method
C/C++, IEC 61131-3
Development Software
InduSoft Web Studio 6.1
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
3
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus UDP master, Modbus ASCII master, DCON master
Dimensions and weight
Width
231 mm
Depth
129 mm
Height
293 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Gross Weight
1 kg
