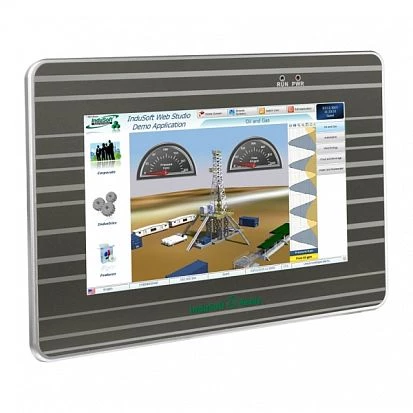

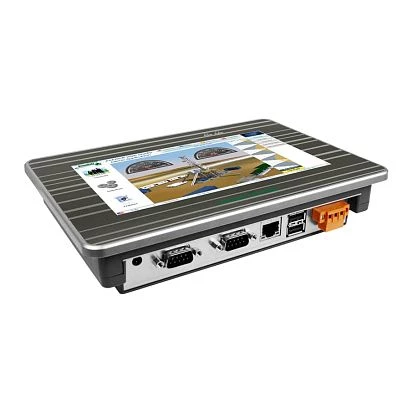

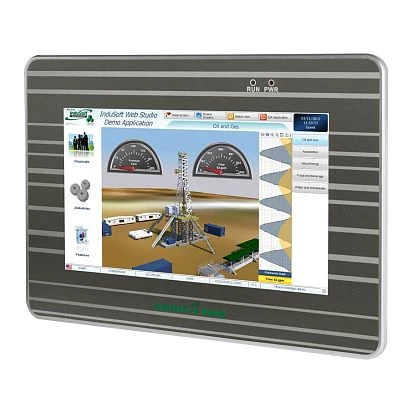

IWS-2201-CE7
ICP DAS
SKU: 06798000
InduSoft based PAC with 300tags, 7" LCD 800x480, resistive touch, Cortex-A8, 720 MHz CPU, 256 MB SDRAM, Gbit LAN, 2xCOM, 2xUSB 2.0, Windows CE 7.0 OS, -10...+60
Price on request
Available
Available
Construction
Mounting Configuration
Panel, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
0.72 GHz
Memory
Default on Board Memory
0.5 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Software
Operating System Installed
Windows Embedded Compact 7
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
Dimensions and weight
Width
148 mm
Depth
44 mm
Height
213 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Mounting Configuration
Panel, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
0.72 GHz
Memory
Default on Board Memory
0.5 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Software
Operating System Installed
Windows Embedded Compact 7
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
Dimensions and weight
Width
148 mm
Depth
44 mm
Height
213 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Mounting Configuration
Panel, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
0.72 GHz
Memory
Default on Board Memory
0.5 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Software
Operating System Installed
Windows Embedded Compact 7
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
Dimensions and weight
Width
148 mm
Depth
44 mm
Height
213 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Mounting Configuration
Panel, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
0.72 GHz
Memory
Default on Board Memory
0.5 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Software
Operating System Installed
Windows Embedded Compact 7
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
Dimensions and weight
Width
148 mm
Depth
44 mm
Height
213 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Documentation
Documentation
Documentation
Documentation
