VP-2201-CE7
ICP DAS
SKU: 06930800

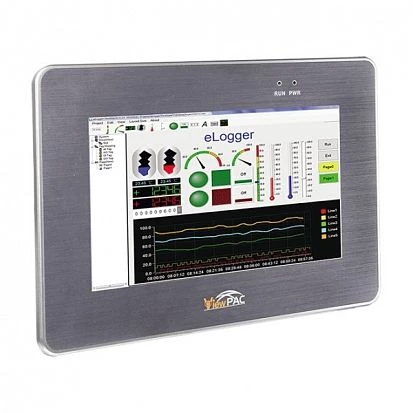

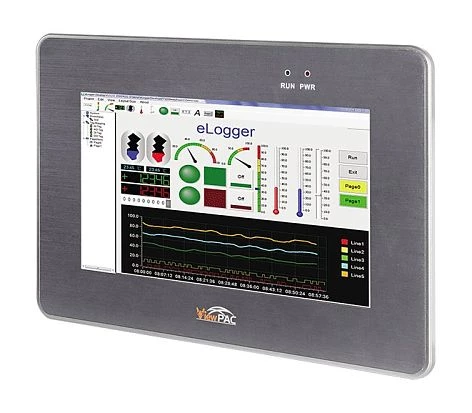

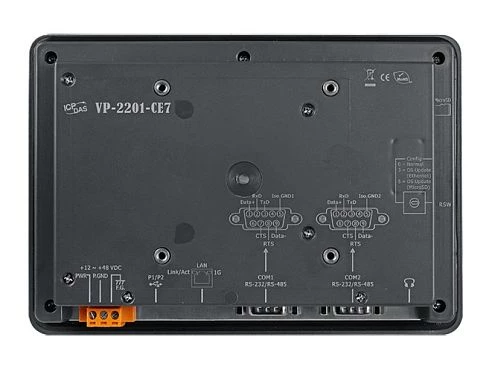

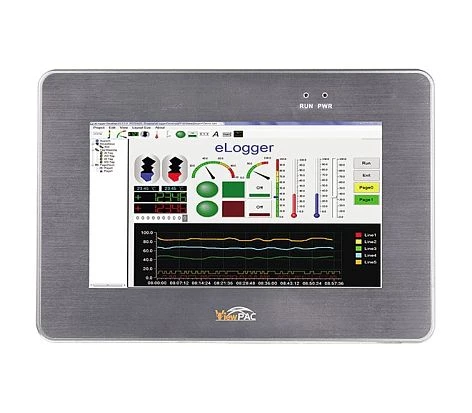

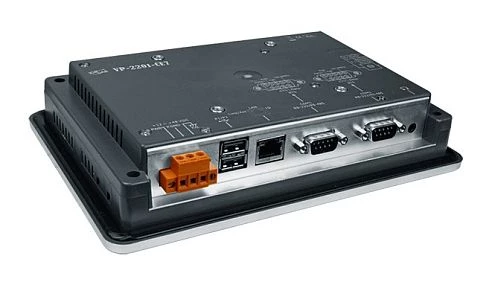

VIEW PAC + 7" 800x480 dots Touch Panel PC with AM3352 720 MHz CPU, 512 MB DRAM, 128 KB MRAM, 256 MB Flash (SSD), 4 GB micro SDHC card, GB LAN, 2xCOM, 2xUSB, NEMA 4/IP65 Front, WES7, 12...48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
CPU
Processor Installed
ARM Cortex A8 TI AM335X
Max CPU frequency
0.72 GHz
Memory
Default on Board Memory
0.5 GB
SRAM
128 kB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Software
Operating System Installed
Windows Embedded Compact 7
Programming Method
C/C++
Development Software
Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/485
2
USB Total
2
Additional Functions
Watchdog timer type
Hardware, Software
Dimensions and weight
Width
213 mm
Depth
44 mm
Height
148 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
