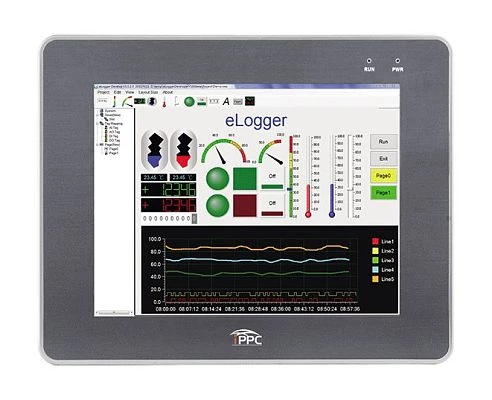

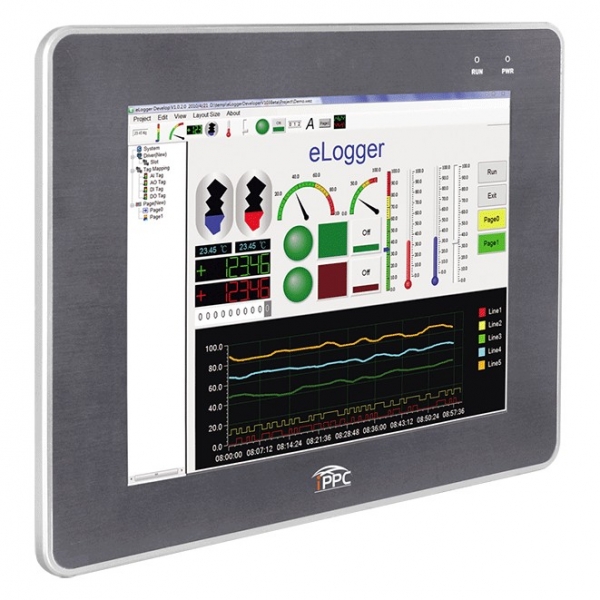

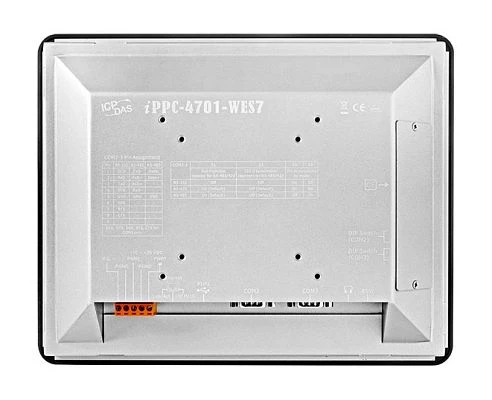

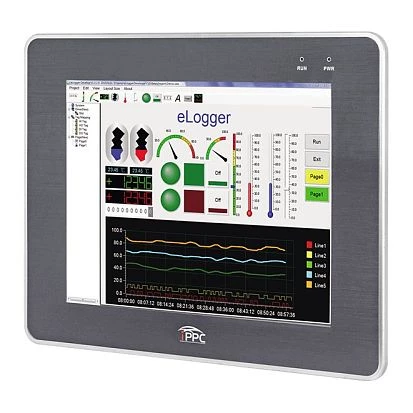

iPPC-4701-WES7
ICP DAS
SKU: 07175000
VIEW PAC 10.4" Touch Panel PC with Intel Atom E3827 1.75GHz CPU, 2GB DDR3, 128KB MRAM, 32GB SSD, GB LAN, 2xUSB 2.0, 8GB CF and WES7 OS, NEMA4/IP65 Front Panel
End-of-life product
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Chassis
IP65, NEMA4
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
CPU
Processor Installed
Intel Atom E3827
Max CPU frequency
1.75 GHz
Memory
Default on Board Memory
2 GB
Installed drive
Flash Memory Capacity
32 MB
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
1st Storage Capacity
8 GB
Drive interfaces
CompactFlash Slots
1
Software
Operating System Installed
Windows Embedded Standard 7
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
Additional Functions
Watchdog timer type
Hardware
Connectors
Connectors

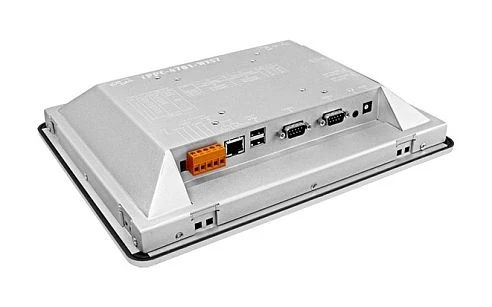

2xDB9, RJ45 Ethernet, 2xUSB, Line Out, DC Input, CompactFlash
Dimensions and weight
Width
291 mm
Depth
53 mm
Height
229 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Gross Weight
4 kg
