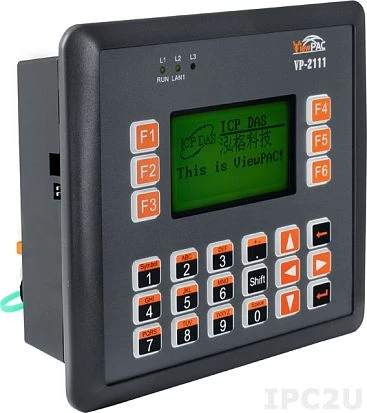

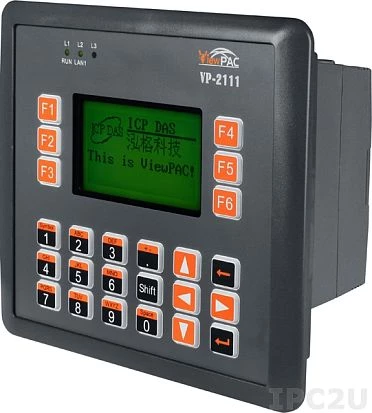

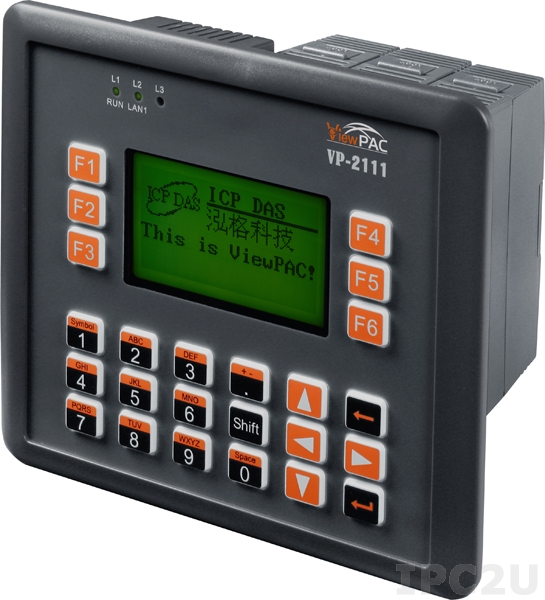

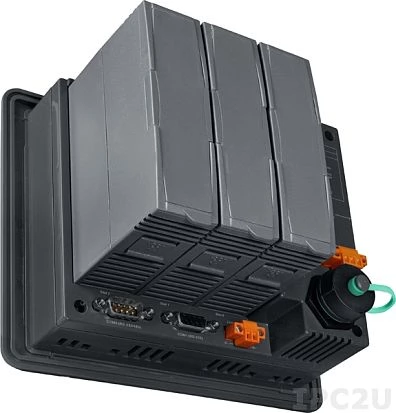

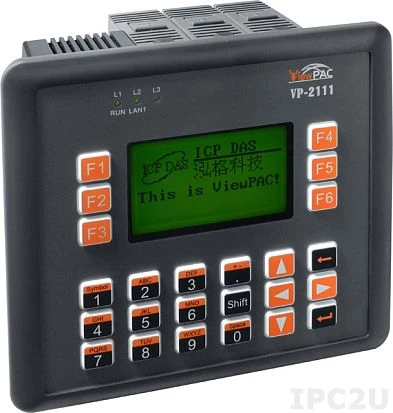

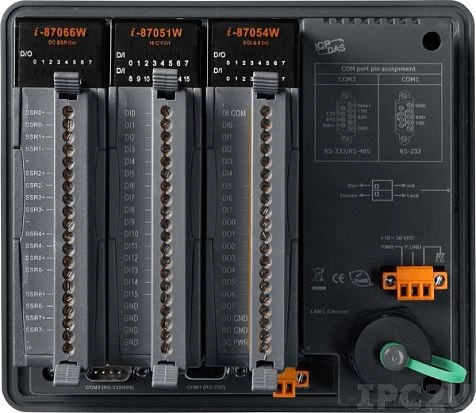

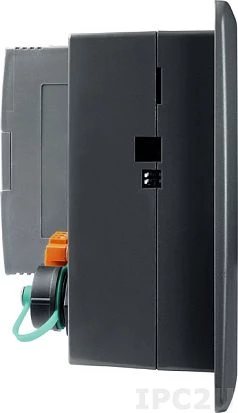

VP-2111

ICP DAS

SKU: 05404600

VIEW PAC+128*64 dots LCM Panel PC with Mini OS 7, 186 80Mhz CPU

Price on request

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Panel

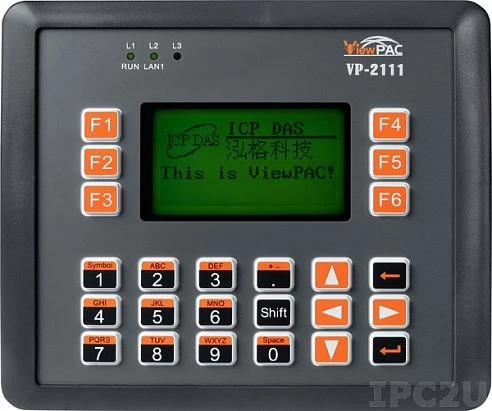

Display

Display Type

STN Dot Matrix LCD

Maximum resolution

128x64 Dots

CPU

Processor Installed

80186

Max CPU frequency

0.08 GHz

Memory

SRAM

512 kB

Installed drive

Flash Memory Capacity

512 MB

EEPROM Memory Capacity

16 kB

Non-volatile NVRAM memory capacity

31 Byte

Built-in NAND Flash Capacity

64 MB

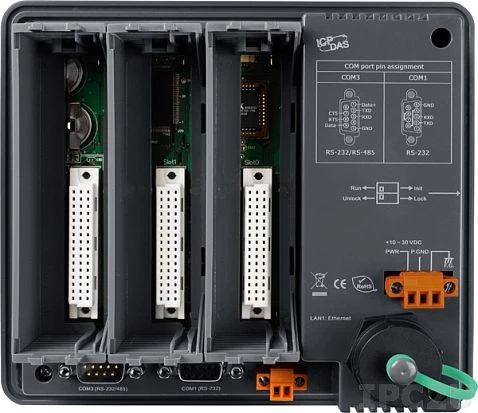

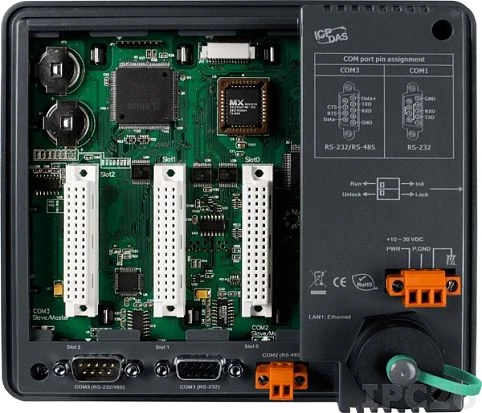

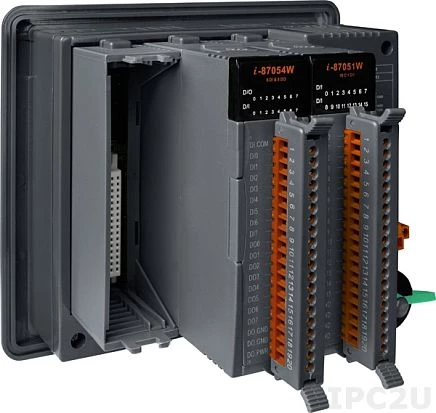

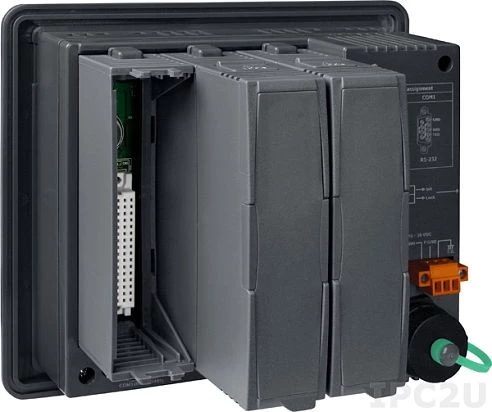

Expansion Module

Quantity of Slots

Supported Module

I-8K series, I-87K series

Software

Operating System Installed

Mini OS7

Programming Method

C/C++

Ethernet

10/100 Mbit/s

Interfaces

COM Total

RS-232

RS-485

RS-232/485

Additional Functions

Watchdog timer type

Hardware

Dimensions and weight

Width

182 mm

Depth

125 mm

Height

158 mm

System Power Input

Input Voltage DC

10..30 V

Operating Conditions

Operating Temperature

-15..55 °C

Dimensions

Net Weight

0.2 kg

Gross Weight

0.35 kg
