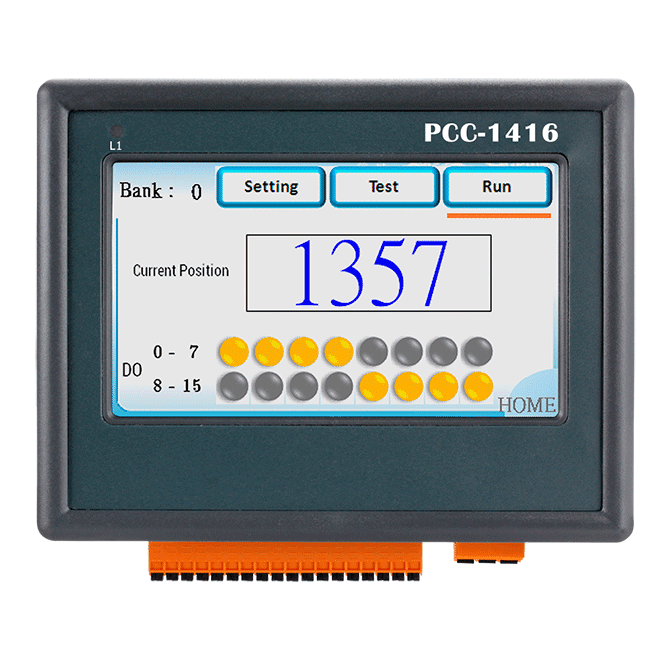

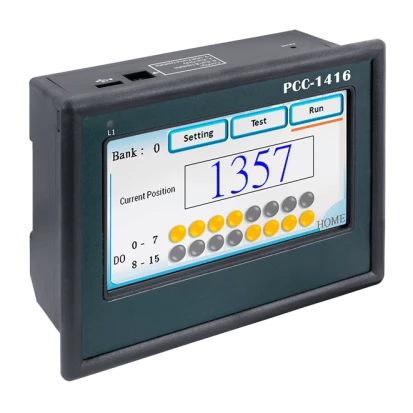

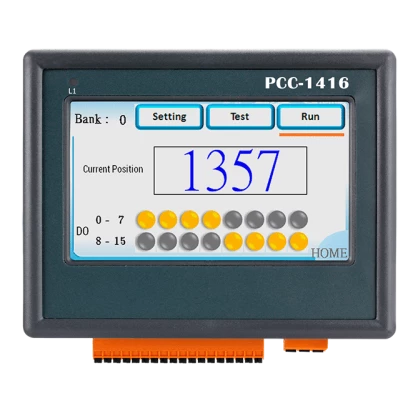

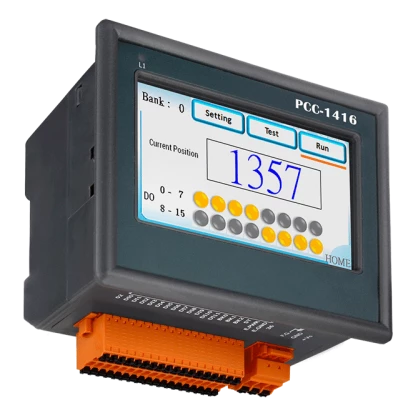

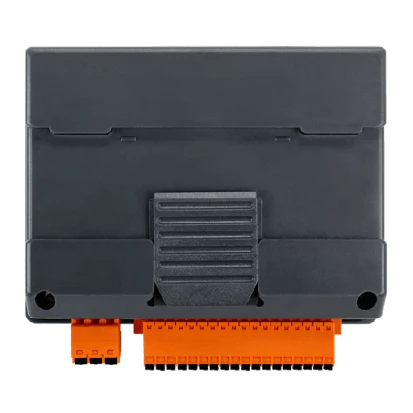

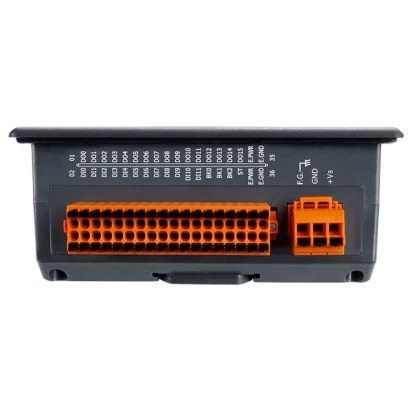

PCC-1416
ICP DAS
SKU: 80215300
Electronic CAM Controller, 4.3" Touch HMI Device, TFT LCD, IP65, HMI, 2xUSB 3.1, 4xDI, 16xDO, 12..48 VDC, Operating Temperature -20..50C
Price on request
Available
Available
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
4.3 "
Maximum resolution
480x272 Dots
Digital Input
Total channels of digital input
4
Sink/Source
Sink
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Interfaces
USB Total
1
Dimensions and weight
Width
131 mm
Depth
114 mm
Height
54 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-90%
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
