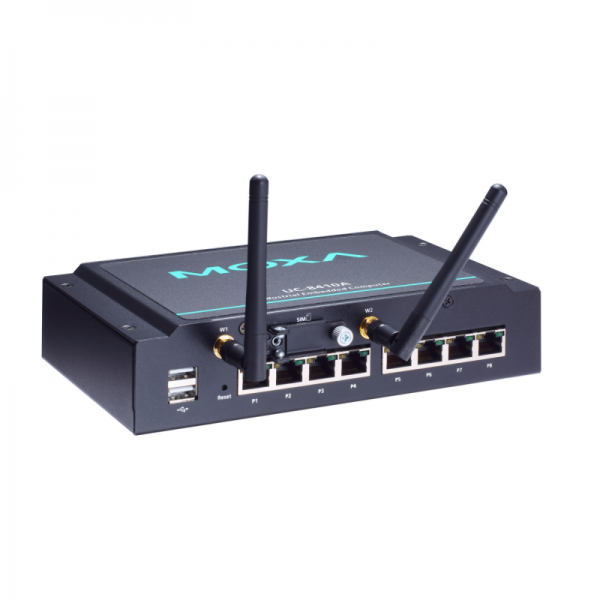

UC-8410A-NW-LX
MOXA
SKU: 09304600
RISC-based industrial embedded computer with Cortex-A7 1GHz, 1GB DDR3L, 8GB eMMC, 8 serial ports, 3 LANs, DIO, mSATA, SD slot, 2xUSB, Linux Debian 8 (kernel 4.4), -10...60C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex A7
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.5 GB
Maximum Memory
1 GB
Ethernet
10/100 Mbit/s
3
Interfaces
COM Total
8
RS-232/422/485
8
USB Total
2
USB 2.0
2
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
mSATA
1
SD Slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
8xRJ45, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
12 V
Power Consumption
19 W
Software
Operating System Installed
Linux Debian 8
Dimensions and weight
Width
200 mm
Height
48.6 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-10..60 °C
Vibration
2 Grms
Shock
20 g
Standards and Certifications
Safety
CCC, UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.79 kg
