UC-8210-T-LX-S
MOXA
SKU: 08614600

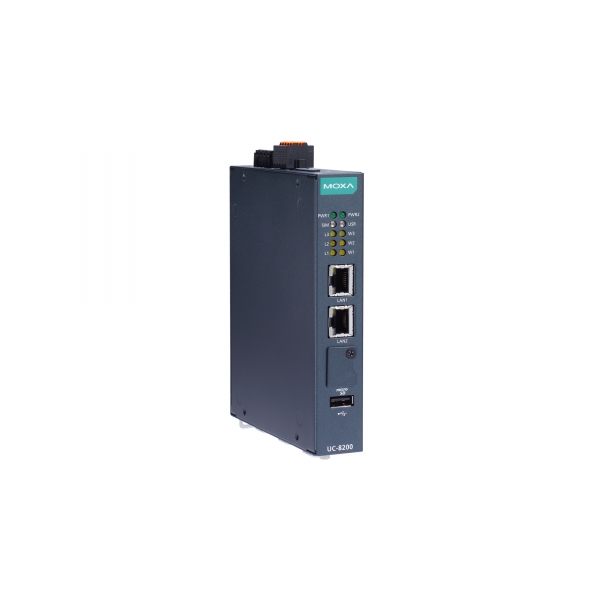

ARM-based wireless-enabled DIN-rail industrial computer with wide operating temperature, Cortex-A7 dual core 1GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, and Linux pre-installed
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
CPU
Processor Installed
ARM Cortex A7
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
USB 2.0
1
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Connectors
Connectors
Console port RS-232 (4-pin)
System Power Input
Input Voltage DC
12 V
Power Consumption
12 W
Software
Operating System Installed
Linux OS
Dimensions and weight
Width
27 mm
Height
141 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Explosion safety
IECEx, ATEX Zone 2 Group II, UL/cUL Class I Division 2
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nC IIC
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.75 kg
Gross Weight
1 kg
